Real-Time Cartesian Controller for UR5/UR5e Robots

A professional-grade ROS 2 package for real-time Cartesian position control of Universal Robots manipulators using external SE3 sensor feedback and inverse kinematics.

🎯 Overview

This project implements a sophisticated control system that enables precise end-effector positioning for UR5 and UR5e robots using external sensor data. The controller leverages inverse kinematics with damped pseudo-inverse Jacobian computation to achieve smooth, stable motion control.

Key Features

• Real-time Cartesian Control: Position-only end-effector control with PID feedback
• External Sensor Integration: SE3 sensor hardware interface for pose feedback
• Multiple Operation Modes: Real robot, Gazebo simulation, and fake hardware support
• Dynamic Target Setting: Runtime target position updates via TF transforms
• Robust Inverse Kinematics: SVD-based damped pseudo-inverse for numerical stability
• Professional Integration: Full ROS 2 Control framework compliance

🏗️ System Architecture

Data Flow Overview

1. SE3 Sensors capture real-time robot and target poses
2. TF Lookup Server bridges sensor data via TCP/IP sockets
3. Hardware Interface integrates sensor data into ROS 2 Control
4. Cartesian Controller computes inverse kinematics and joint velocities
5. UR5/UR5e Robot executes precise end-effector positioning

🎥 Live Demonstration

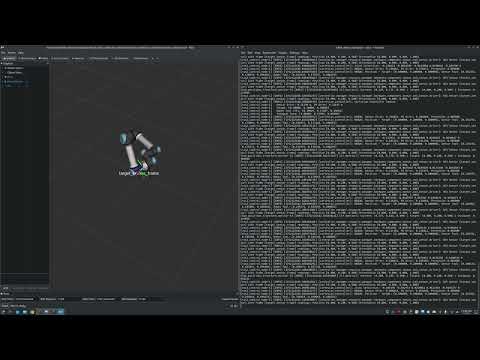

Watch the UR5 robot performing real-time Cartesian position control using external SE3 sensor feedback. (Visualization)

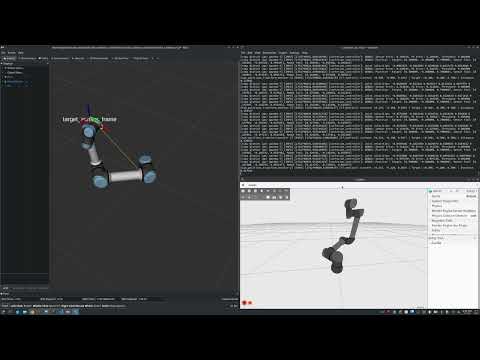

Watch the UR5 robot performing real-time Cartesian position control using external SE3 sensor feedback. (Visualization and Simulation)

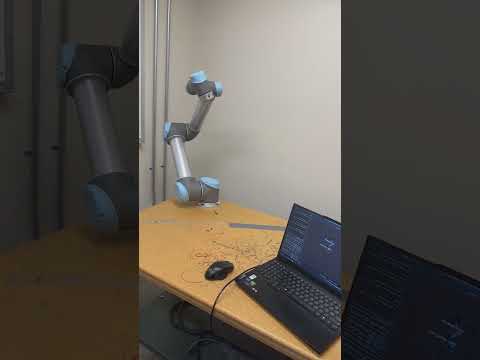

Real robot demo using the UR5 - Will post the UR5e later

Package Organization

robotics_packages/
├── hardware_interfaces/
│   └── se3_sensor_driver/          # SE3 sensor hardware interface
├── controllers/
│   └── cartesian_controller/       # Core Cartesian control algorithms
└── applications/
    └── ur5e_cartesian_control/     # UR5e-specific implementation

🚀 Quick Start

Prerequisites

• ROS 2 Humble
• Universal Robots ROS 2 driver
• KDL (Kinematics and Dynamics Library)
• Eigen3

Installation

1. Clone the repository:

   cd ~/ros2_ws/src
   git clone https://github.com/Seyi-roboticist/_controller_.git

2. Install dependencies:

   cd ~/ros2_ws
   rosdep install --from-paths src --ignore-src -r -y

3. Build the workspace:

   colcon build --packages-select se3_sensor_driver ros2_controller_cartesian ur5e_cartesian_control
   source install/setup.bash

Basic Usage

For Real UR5e Robot:

ros2 launch ur5e_cartesian_control ur5e.launch.py use_fake:=false robot_ip:=<YOUR_ROBOT_IP>

For Gazebo Simulation:

ros2 launch ur5e_cartesian_control ur5e.launch.py use_fake:=true use_gazebo:=true

For Hardware-in-the-Loop Testing:

ros2 launch ur5e_cartesian_control ur5e.launch.py use_fake:=true

🎮 Dynamic Target Control

Set target positions dynamically during operation:

# Move to position (x=0.4, y=0.2, z=0.5)
ros2 run tf2_ros static_transform_publisher 0.4 0.2 0.5 0 0 0 base_link target_sensor_frame

# Automated multi-target demo
ros2 run ur5e_cartesian_control two_positions_transform_monitor

🔧 Configuration

Controller Parameters

Key parameters in config/ur5e_controllers.yaml:

cartesian_controller:
  ros__parameters:
    velocity_scaling_factor: 0.07      # Motion speed scaling
    error_threshold: 0.005             # Position accuracy (meters)
    position_gain: [2.2, 2.2, 2.2]    # Proportional gains [x,y,z]
    integral_gain: [0.02, 0.02, 0.02] # Integral gains [x,y,z]
    derivative_gain: [0.5, 0.5, 0.5]  # Derivative gains [x,y,z]
    damping_factor: 0.05               # Jacobian damping

Sensor Configuration

Configure SE3 sensors in your launch file:

DeclareLaunchArgument("sensor_ip", default_value="192.168.1.100")
DeclareLaunchArgument("robot_sensor_name", default_value="robot_sensor")
DeclareLaunchArgument("target_sensor_name", default_value="target_sensor")

📊 Technical Details

Control Algorithm

1. Sensor Data Acquisition: External SE3 sensors provide real-time pose feedback
2. Transform Processing: TF lookup server bridges sensor data to ROS ecosystem
3. Error Calculation: PID-based Cartesian error computation
4. Inverse Kinematics: SVD-based damped pseudo-inverse Jacobian method
5. Joint Control: Velocity commands sent to robot joints

Performance Characteristics

• Update Rate: 100 Hz control loop
• Position Accuracy: ±5mm typical
• Convergence Time: <3 seconds for 50cm movements
• Workspace: Full UR5e operational envelope

🧪 Testing & Validation

The system includes comprehensive testing modes:

• Unit Tests: Individual component validation
• Integration Tests: Full system loop verification
• Hardware Tests: Real robot validation
• Simulation Tests: Gazebo environment testing

🔍 Monitoring & Debugging

RViz Visualization

Launch with visualization:

ros2 launch ur5e_cartesian_control ur5e.launch.py use_rviz:=true

Debug Information

Monitor controller status:

ros2 topic echo /cartesian_controller/status
ros2 service call /controller_manager/list_controllers

🤝 Contributing

1. Fork the repository
2. Create a feature branch (git checkout -b feature/AmazingFeature)
3. Commit your changes (git commit -m 'Add some AmazingFeature')
4. Push to the branch (git push origin feature/AmazingFeature)
5. Open a Pull Request

📄 License

This project is licensed under the MIT License - see the LICENSE file for details.
