Quick Start Guide

Steps to run MultiVerisense example in Visual Studio

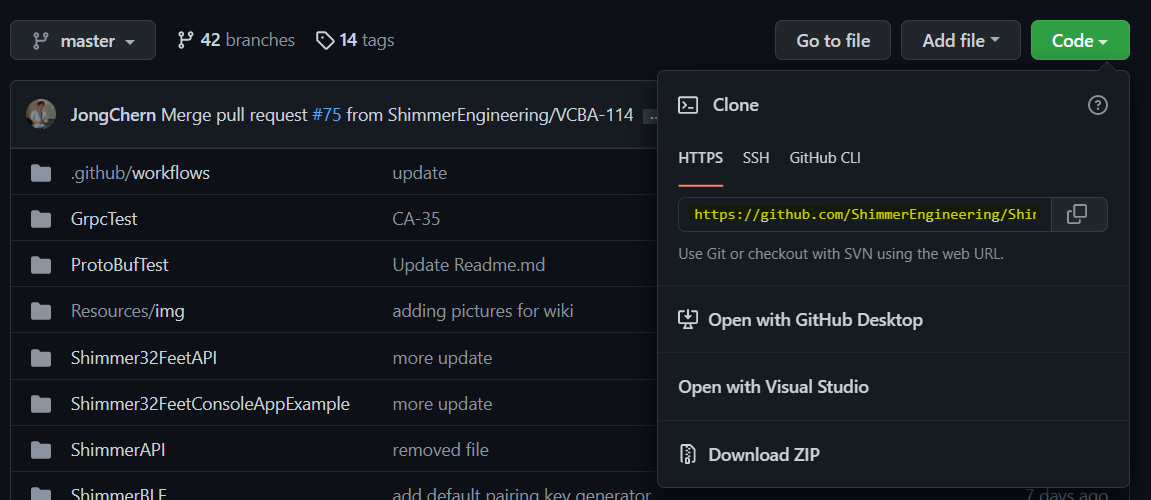

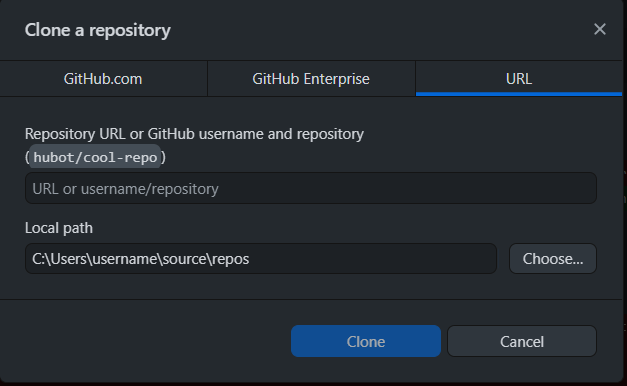

1. Copy the link and clone the repository (Github Desktop is being used in the example below)

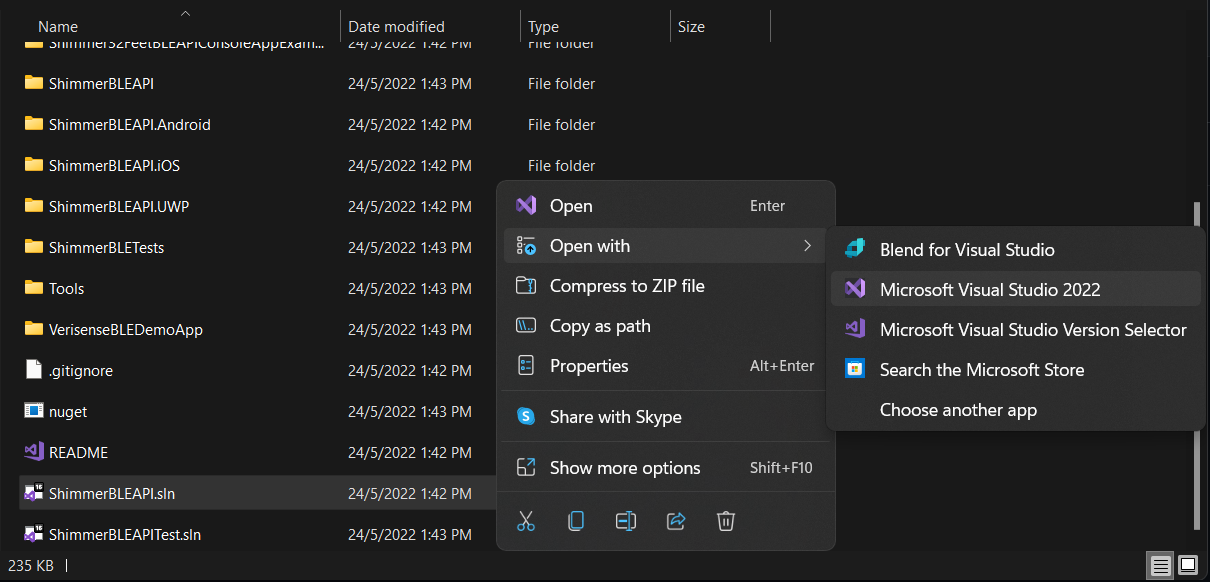

2. Open the ShimmerBLEAPI.sln using Visual Studio

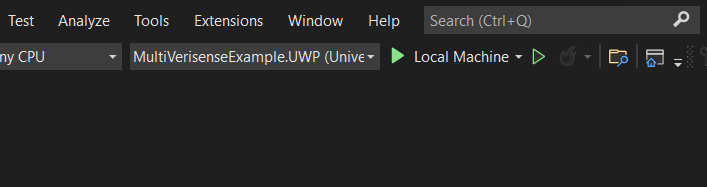

3. Build and deploy MultiVerisenseExample.UWP

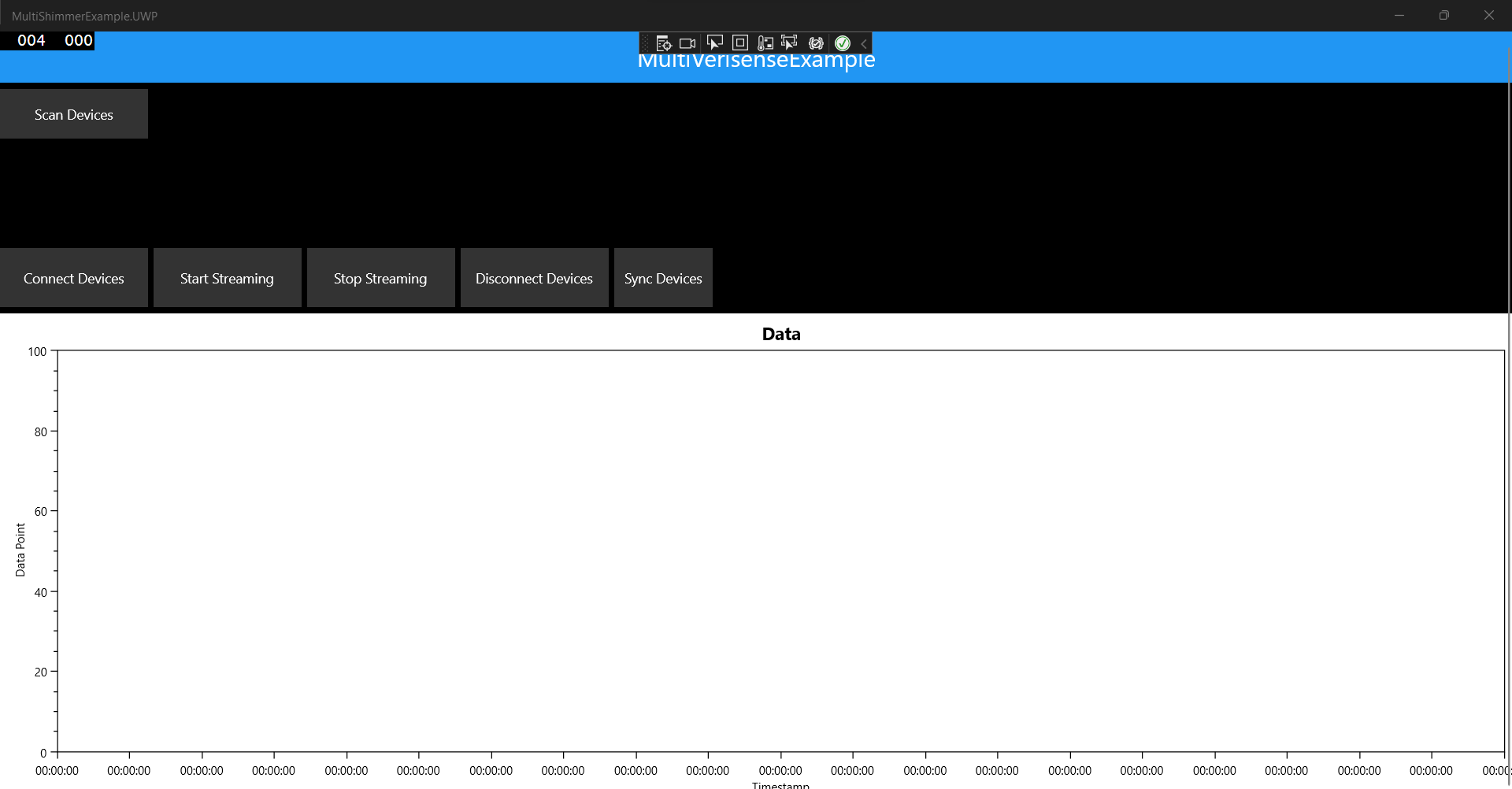

4. Scan the devices, if the device is already paired, proceed to step 6

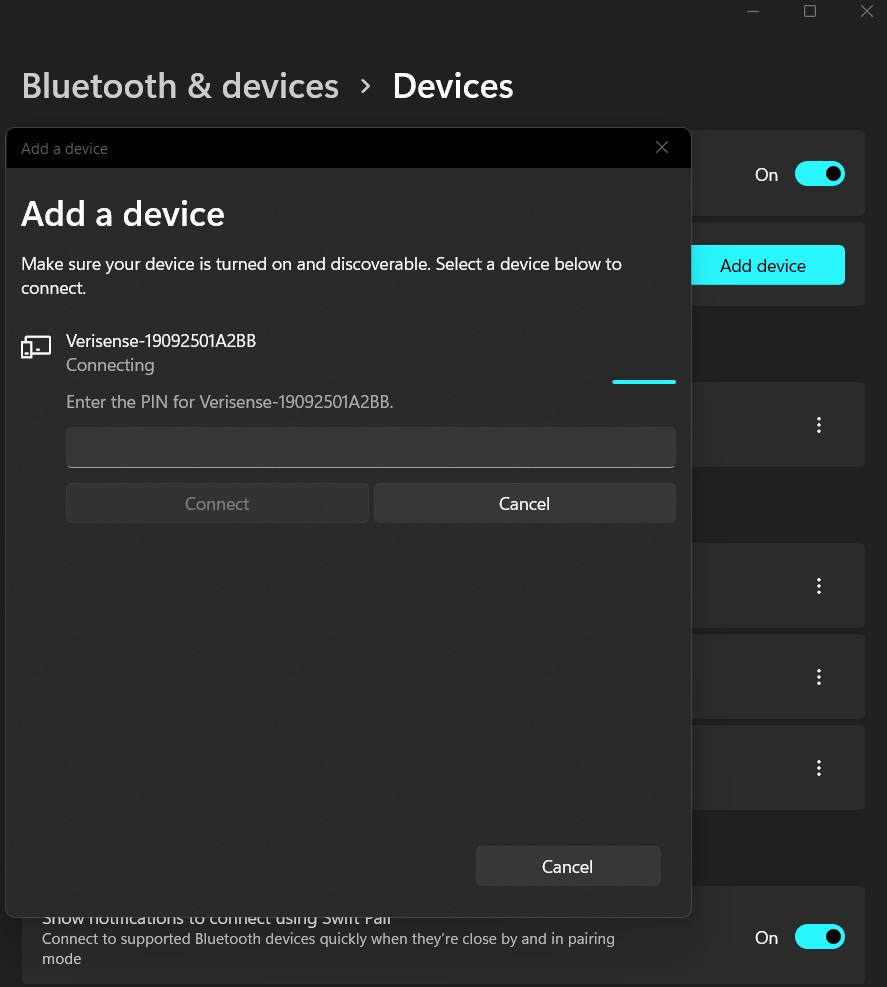

5. Pair the Verisense device through bluetooth settings (the default pairing key is 123456)

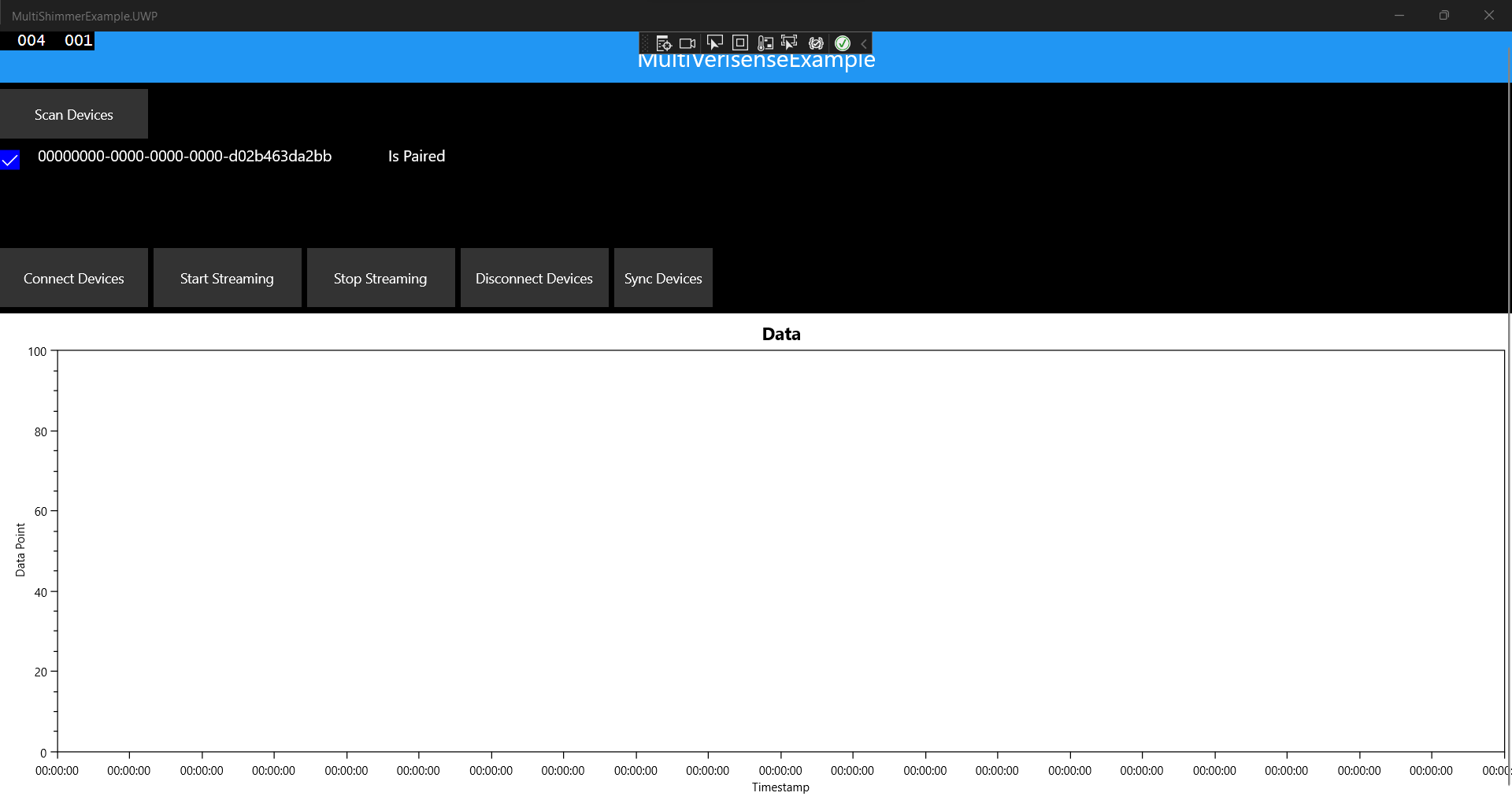

6. Connect and start streaming

7. Data Sync

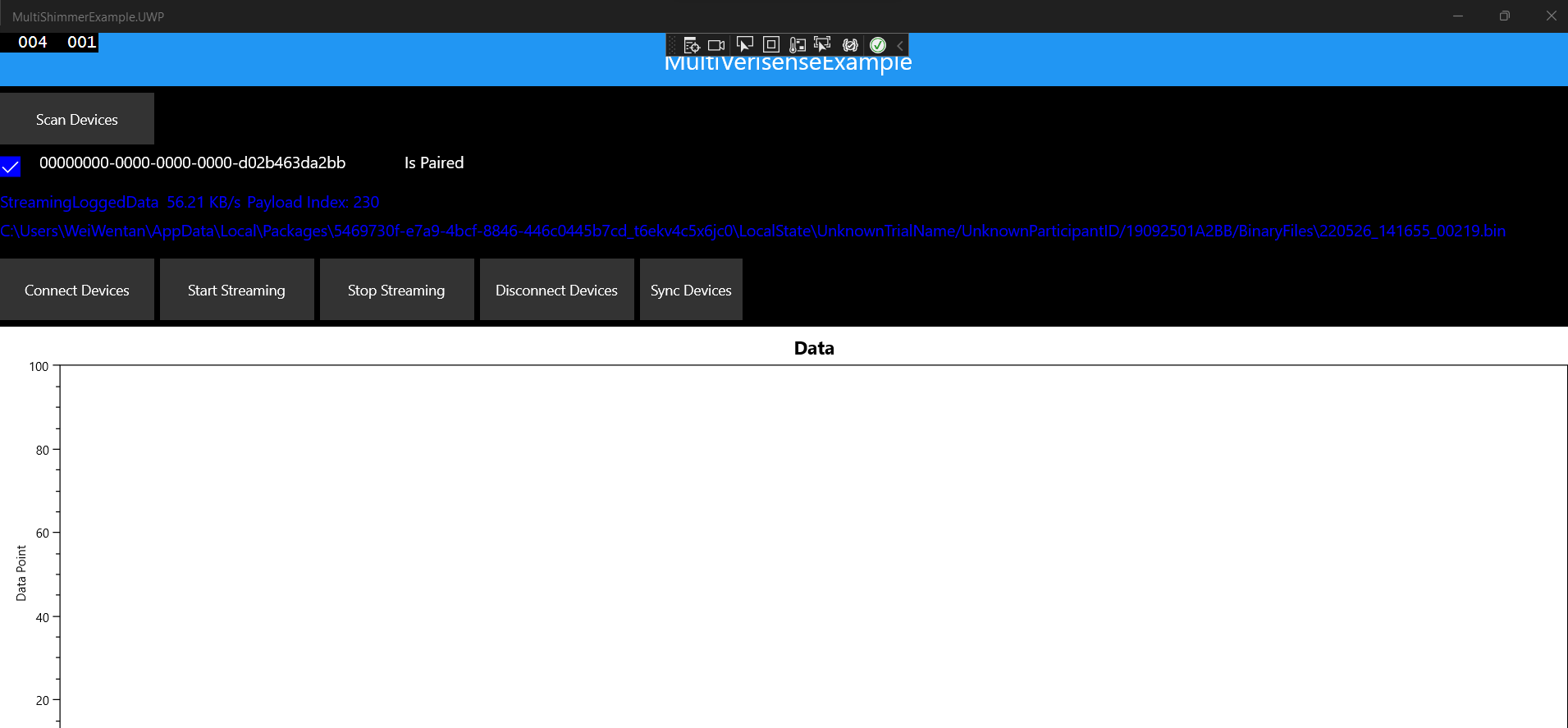

8. After the data sync is completed, note the bin file directory above

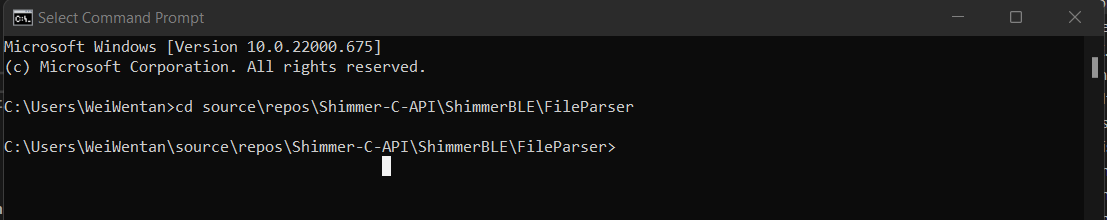

9. Open command prompt and navigate to the directory where the VerisenseFileParserPC.jar is located (Shimmer-C-API > ShimmerBLE > FileParser)

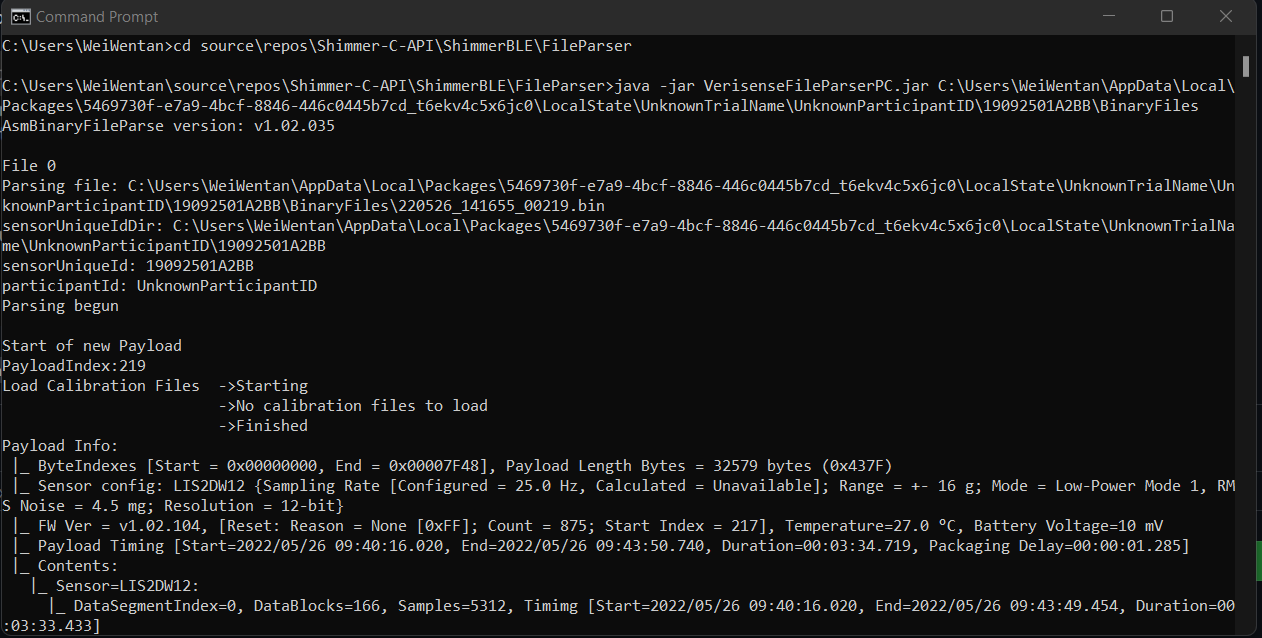

10. Run java -jar VerisenseFileParserPC.jar <path> <optional arguments> in the command prompt

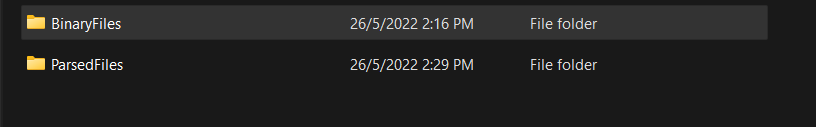

11. After the parsing is completed, a new folder containing the parsed files is added

12. For more details regarding the file parser and parsed file, can see file parser
