This is an application that controls a Lego robot powered by a Raspberry Pi with the BrickPi add-on board.
It uses the erlang-mini for the Raspberry Pi.
The brickpi process uses the Erlang port mechanism to communicate with the Brick Pi. To use this process, you start it like this:
brickpi:start_link().The default start_link function assumes that the brickpi_erlport executable is somewhere in the path. You can also specify the path to the program as an argument to start_link:
brickpi:start_link("/home/mark/brickpi/brickpi_erlport").The brickpi process uses several data structures and constants that are defined in the brickpi.hrl file, make sure you include it with:
-include("brickpi.hrl").Before you can read sensors or run motors you need to specify which motors should be active and what type of sensor is connected to each port. To do this, call the brickpi:enable_peripherals function with a #robot_settings structure. For example, to enable motors in ports C and D, and use a red light sensor in port 1, do:
brickpi:enable_peripherals(#robot_settings(motor_b=true, motor_c=true, port_1=?SENSOR_COLOR_RED).To set the speeds of the motors, call brickpi:set_motor_speeds with a #robot_motor_speeds structure. You are allowed to set a timeout for the motors and I have found it very helpful to always set a timeout so I don't have a runaway robot. The timeout is specified in milliseconds.
brickpi:set_motor_speeds(#robot_motor_speeds(motor_b=100, motor_c=-100, timeout=250).To read the values of the sensors and also the motor rotations, call:
brickpi:get_data().It returns a #robot_data structure where motor_a, motor_b, motor_c, and motor_d contain the rotation sensor values of each motor, and port_1, port_2, port_3, and port_4 contain #sensor_data structures for each port.
A #sensor_data structure contains two fields - value, which is the main integer value of the sensor, and extra, which is a list of four integers that contain any extra sensor data. When using the full color sensor, for example, the extra list contains the RGB values.
You can play with the brickpi module without running the example code. Assuming you have build the brickpi_erlport and have it somewhere in your path on the Pi, and that you have installed erlang-mini and compiled at least brickpi.erl (erlc -o ebin brickpi.erl), you can start up erlang:
erl -pa ebin
The "-pa ebin" option adds the ebin directory (where erlc was told to store output) to your Erlang path. Now, start the brickpi process:
brickpi:start_link().To use the Erlang structures for the robot within the Erlang interpreter, you have to declare them from within the interpreter. You basically take the definitions from brickpi.hrl and replace "-record" with "rd" like this:
rd(robot_settings, {motor_a, motor_b, motor_c, motor_d, port_1, port_2, port_3, port_4}).
rd(robot_motor_speeds, {motor_a, motor_b, motor_c, motor_d, timeout}). Now you should be ready to interact with the peripherals:
brickpi:enable_peripherals(#robot_settings(motor_b=true, motor_c=true, port_1=?SENSOR_COLOR_RED).
brickpi:set_motor_speeds(#robot_motor_speeds(motor_b=100, motor_c=-100, timeout=250).
brickpi:get_data().The example program consists of the brickpi module, as well as a robot_fsm module that contains the robot logic, a robot_sup containing a supervisor module that starts the brickpi and robot_fsm processes and makes sure they stay running, and the robot_app application that starts the supervisor.
The robot that this example program drives has two motors and a red light sensor (I had some trouble getting the full light sensor to work). Because of the way I built the robot, the motors are backwards, so you have to use a negative motor speed to go forwards.
The light sensor thresholds were numbers I came up with after experimenting with the printed test track that came with my Lego NXT set. They may not work well under all lighting conditions.

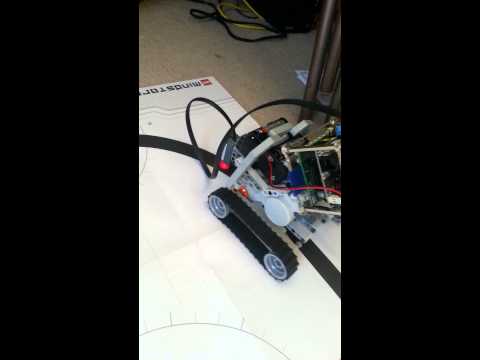

Here's the robot in action:
If you have questions or comments, you can contact me (Mark Wutka) at [email protected].
