BSM3G Coffea

Python package that uses a columnar framework to process input tree-based NanoAOD files using the coffea and scikit-hep Python libraries.

• Input filesets
• Workflows
• Local run
• Submit Condor jobs
• Postprocessing

Input filesets

For each data-taking year or simulation campaign, the corresponding configuration file in analysis/filesets/<year>_<nano version>.yaml defines the datasets to be processed.

SingleMuonF:
  era: F
  process: Data
  key: muon
  query: SingleMuon/Run2017F-UL2017_MiniAODv2_NanoAODv9-v1/NANOAOD
  xsec: null
DYJetsToLL_inclusive_50:
  era: MC
  process: DYJetsToLL
  key: dy_inclusive
  query: DYJetsToLL_M-50_TuneCP5_13TeV-amcatnloFXFX-pythia8/RunIISummer20UL17NanoAODv9-106X_mc2017_realistic_v9-v2/NANOAODSIM
  xsec: 6025.6
signal_Wpb_MuNu_M300:
  era: MC
  process: Wpb_MuNu_M300
  key: Wpb_MuNu_M300
  query: Wpb_MuNu_M300/crendonh-RunIISummer20UL17_NanoAODv9_Wpb_MuNu_M300-00000000000000000000000000000000/USER
  xsec: 1.0

• era: The dataset era. For real data, this is the run period letter (e.g. B, F, etc.). For Monte Carlo, use "MC"
• process: Name of the process, used in postprocessing to group related datasets into the same physical category (e.g. DYJetsToLL across multiple HT bins).
• key: Category identifier linking the dataset to workflow definitions under datasets (see next section)
• query: CMS DAS path used to locate and fetch the dataset
• xsec: Cross section in picobarns (pb). Must be null for real data, and specified for Monte Carlo samples so that event weights can be normalized to luminosity.

These fileset definitions are the entry point for the analysis: they control which datasets are included, how they are grouped, and how they are weighted, ensuring a transparent and reproducible workflow across different campaigns.

Workflows

A workflow defines the full configuration of an analysis: which datasets are used, how objects and events are selected, which corrections and weights are applied, and which histograms are produced. Workflows are stored as YAML files in the analysis/workflows directory.

Each workflow YAML is organized into the following main sections:

• datasets: which samples to run over (referencing dataset keys defined in the filesets)
• object_selection: how to build and filter physics objects (muons, electrons, jets, etc.)
• event_selection: event-level cuts, triggers, and category definitions
• corrections: physics corrections and event weights
• histogram_config: definition of output histograms

Together, these sections control the full behavior of the analysis pipeline.

The available workflows are:

• ztomumu
• ztoee
• W'+b
  • $t\bar{t}$ estimation
    • 2b1mu
    • 2b1e
    • 1b1mu1e
    • 1b1e1mu
  • QCD estimation
    • qcd_mu
    • qcd_cr1T_mu
    • qcd_cr2T_mu
    • qcd_ele
    • qcd_cr1T_ele
    • qcd_cr2T_ele
• VBF SUSY
  • ztojets

Click here to display Workflow documentation

datasets

This section specifies which datasets will be processed by the workflow. Instead of repeating full dataset definitions, it simply lists the keys defined in the fileset YAML files.

datasets:
  data:               # Keys of real data samples
    - electron
  mc:                 # Keys of background samples
    - dy_inclusive
    - singletop
    - tt
    - wjets_ht
    - diboson
  signal:             # Keys of signal samples
    - Wpb_MuNu_M300
    - Wpb_MuNu_M400
    - Wpb_MuNu_M600

• Each entry corresponds to the key field defined in the fileset configuration
• The job submission script runner.py reads this list to determine which samples to run for the workflow

object_selection

This section defines how physics objects (muons, electrons, jets, dileptons, etc.) are selected within the workflow.
Each object is built starting from a NanoAOD collection or from a custom selection function, and then filtered with a set of cuts.

object_selection:
  muons:
    field: events.Muon
    cuts:
      - events.Muon.pt > 10
      - np.abs(events.Muon.eta) < 2.4
      - working_points.muon_iso(events, 'tight')
      - working_points.muon_id(events, 'tight')
  electrons:
    field: events.Electron
    cuts:
      - events.Electron.pt > 10
      - np.abs(events.Electron.eta) < 2.5
      - working_points.electron_id(events, 'wp80iso')
      - delta_r_higher(events.Electron, objects['muons'], 0.4)
  dimuons:
    field: select_dimuons
    cuts:
      - objects['dimuons'].l1.delta_r(objects['dimuons'].l2) > 0.02
      - objects['dimuons'].l1.charge * objects['dimuons'].l2.charge < 0
      - (objects['dimuons'].p4.mass > 60.0) & (objects['dimuons'].p4.mass < 120.0)

• field: Defines the source of the object

  • A NanoAOD field such as events.Muon
  • A custom function such as select_dimuons, implemented as a method of the ObjectSelector class Each selected object is stored sequentially in the dictionary objects, which allows referencing them later (e.g. objects['dimuons'])

• cuts: A list of object-level requirements. These can be:

  • Direct expressions using NanoAOD fields (events.Muon.pt > 24)
  • Conditions based on other selected objects (objects['dimuons'].z.mass < 120.0)
  • A working point function (working_points.muon_iso(events, 'tight')), defined in analysis/working_points/working_points.py

• Defining reusable masks with add_cut

  Instead of applying all cuts at once, you can define named masks that tag objects with different levels of quality. These masks can then be used later in the workflow.

  muons:
      field: events.Muon
      add_cut:
        is_loose:
          - events.Muon.pt > 5
          - np.abs(events.Muon.eta) < 2.4
          - events.Muon.isGlobal | (events.Muon.isTracker & (events.Muon.nStations > 0))
        is_relaxed:
          - objects['muons'].is_loose
          - np.abs(events.Muon.sip3d) < 4
        is_tight:
          - objects['muons'].is_loose
          - objects['muons'].is_relaxed
          - events.Muon.isPFcand | ((events.Muon.highPtId > 0) & (events.Muon.pt > 200))
  zcandidates:
      field: select_zcandidates
      add_cut:
        is_ossf:
          - objects['zcandidates'].l1.pdgId == -objects['zcandidates'].l2.pdgId
        is_ss:
          - objects['zcandidates'].l1.pdgId == objects['zcandidates'].l2.pdgId
        is_sr:
          - objects['zcandidates'].is_ossf
          - (1*objects['zcandidates'].l1.is_tight + 1*objects['zcandidates'].l2.is_tight) == 2
        is_sscr:
          - objects['zcandidates'].is_ss
          - objects['zcandidates'].l1.is_relaxed
          - objects['zcandidates'].l2.is_relaxed

event_selection

This section defines event-level requirements and how they are grouped into analysis regions (categories).
While object_selection filters individual particles, here we decide which events are kept for histogramming and further analysis.

event_selection:
  hlt_paths:
    muon:                        # Dataset key (as defined in the fileset YAML)
      - SingleMu                 # Trigger flag (defined in analysis/selections/trigger_flags.yaml)
  selections:                    # Event-level selections
    trigger: get_trigger_mask(events, hlt_paths, dataset, year)
    trigger_match: get_trigger_match_mask(events, hlt_paths, year, events.Muon)
    lumi: get_lumi_mask(events, year)
    goodvertex: events.PV.npvsGood > 0
    two_muons: ak.num(objects['muons']) == 2
    one_dimuon: ak.num(objects['dimuons']) == 1
    leading_muon_pt: ak.firsts(objects['muons'].pt) > 30
    subleading_muon_pt: ak.pad_none(objects['muons'], target=2)[:, 1].pt > 15
  categories:
    base:                        # Named selection region
      - goodvertex
      - lumi
      - trigger
      - trigger_match
      - two_muons
      - leading_muon_pt
      - subleading_muon_pt
      - one_dimuon

• hlt_paths: Maps each dataset key (e.g. muon, electron) to the list of HLT trigger flags relevant for that dataset

  • Trigger flags are defined in analysis/selections/trigger_flags.yaml
  • For data: only the triggers listed under the corresponding dataset key are applied.
  • For MC: all triggers across datasets are combined with a logical OR (via get_trigger_mask())
  • In addition, lepton–trigger object matching is enforced (via get_trigger_match_mask()) to ensure selected leptons are consistent with the fired triggers.

• selections: Defines event-level cuts. Similarly to object selection, you can use any valid expression from a NanoAOD field or a custom event-selection function defined at analysis/selections/event_selections.py

• categories: Named groups of selections that define analysis regions

  • Each category is a list of selection keys.
  • These regions are used to fill histograms and run postprocessing.

corrections

This section specifies which object-level corrections and event-level weights should be applied.

corrections:
  objects:
    - jets                 # JEC/JER
    - jets_veto            # Jets veto maps
    - muons                # Muon scale and resolution
    - electrons            # Electron scale and resolution
    - taus                 # Tau energy scale
    - met                  # MET phi modulation
  apply_obj_syst: true     # Apply object-level systematic variations
  event_weights:
    genWeight: true
    pileupWeight: true
    l1prefiringWeight: true
    partonshowerWeight: true
    muon:
      - id: tight
      - iso: tight
      - trigger: true
    electron:
      - id: false
      - reco: false
      - trigger: false

• apply_obj_syst: If true, object-level systematic variations (e.g., JEC/JER, MET, tau energy scale, muon rochester corrections) are automatically applied and propagated to downstream event-level calculations.
• Corrections are implemented through a set of utilities managed by two functions:
  • object_corrector_manager: applies object-level corrections (jets scale and smearing corrections, rochester correctiones etc.).
  • weight_manager: applies event-level weights (pileup, lepton identification efficiencies, etc.).

Note: Ensure that the working points used for object selection and event-level corrections (ID, isolation, etc.) are consistent!

Click here to display Corrections documentation

Object-level corrections Particle kinematics are not perfectly measured, so we apply corrections to bring reconstructed objects closer to their true values

• JEC/JER corrections:

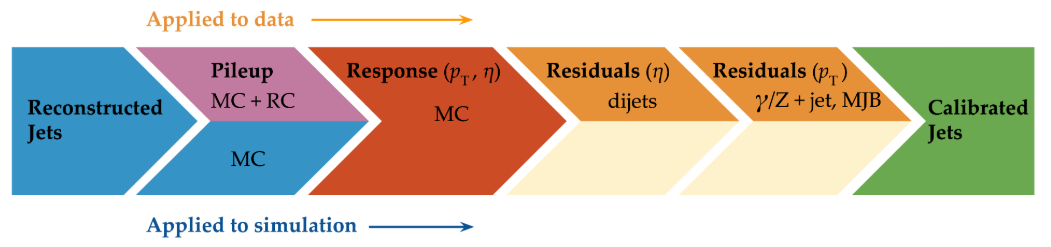

  • JEC: CMS applies a factorized sequence of corrections, where each level addresses a specific effect. Each step rescales the jet four-momentum by a correction factor that depends on variables such as jet $p_T$, $\eta$, pileup density $\rho$, and flavor. The corrections are applied sequentially in a fixed order, with the output of one step becoming the input to the next.



  In data, the mandatory Jet Energy Corrections are L1 + MC-truth + L2L3Residuals. The official CMS corrections are already applied in NanoAOD.

  In MC, the mandatory Jet Energy Corrections are L1 + MC-truth. We must apply the JEC ourselves so that jets are calibrated consistently with data.

  Note: Starting Run3, PUPPI jets are the primary jet collection. PUPPI jets do not need the L1 Pileup corrections

  • JER: Measurements show that the jet energy resolution (spread of reconstructed $p_T$ around the true value) is worse in data than in simulation. To account for this, jets in simulation are smeared so that their resolution matches the one observed in data. Two main methods are recommended:

    • Scaling method: If a particle-level (generator) jet can be matched to the reconstructed jet, the corrected jet $p_T$ is rescaled by a factor $$c_\text{JER} = 1 + (s_\text{JER} - 1)\frac{p_T - p_T^{\text{ptcl}}}{p_T}$$ where $s_\text{JER}$ is the data-to-simulation scale factor.

    • Stochastic smearing: If no matching generator jet is available, the $p_T$ is randomly fluctuated according to the measured resolution in simulation and the scale factor $s_\text{JER}$.

    • The hybrid method is the CMS recommendation:

      • Use the scaling method when a good gen–reco match exists.
      • Fall back to stochastic smearing otherwise.

  Since JEC/JER modifies the kinematics of jets, the MET must be recomputed accordingly. In our framework the JEC/JER corrections are handled by Coffea’s [jetmet_tools]

  Run2 Workflow

  1. Build Jet/MET Factories

     • Use coffea.jetmet_tools (JECStack, CorrectedJetsFactory, CorrectedMETFactory) with text-based JEC/JER files

     • MC and data have separate sets of files (.jec.txt for JEC, .jr.txt and .jersf.txt for JER). See here

     • Factories are serialized using cloudpickle for later application. See here

  2. Apply Corrections

     • Apply JEC/JER corrections with the pre-built factories. See here

     • MET is updated to propagate the effect of corrected jets (Propagation to MET is included automatically by CorrectedMETFactory)

  Run3 Workflow

  • jerc_params.yaml defines the parameters needed to build the factories (runs per year, jet algorithms, JEC levels for MC and Data, JEC/JER tags and sources of uncertainties)

  • Apply JEC/JER corrections with the built factories. See here

  • PuppiMET is not updated: Since the unclustered energy uncertainties in the MET collection switched from cartesian coordinates to ($p_T$, $\phi$) coordinates, the CorrectedMETFactory interface in coffea no longer works

    Summary

    • JEC: rescales jet four-momentum to correct detector response.
    • JER: smears MC jets to match the worse resolution observed in data.
    • Both corrections must be applied before event selection, and MET must be recomputed after applying them.
    • Our workflow follows the official CMS recommendations from the JME group

• Jet veto maps: These are used to identify regions of the detector with anomalous jet activity, based on the $\phi$-symmetry of CMS. These regions include:

  • Hot zones: regions with an excess of reconstructed jets.
  • Cold zones: regions with a lack of reconstructed jets.

  These anomalies can arise from detector inefficiencies, miscalibrations, or problematic regions of the calorimeter.

  How the correction works:

  1. Loading the veto map

     • Veto maps are provided as JSON files via correctionlib and indexed by year.
     • Each jet in the event is checked against the map using its $(\eta, \phi)$ coordinates.
     • Non-zero map values indicate that the jet falls into a vetoed region.

  2. Applying the veto

     • Jets located in vetoed regions are removed from the event collection.
     • Only jets in "safe" regions (map value = 0) are kept.

  3. Propagating to MET

     • Since removing jets changes the momentum balance, the MET vector is recalculated.
     • The $x$ and $y$ components of MET are adjusted by subtracting the vetoed jets’ momentum contributions.
     • MET $p_T$ and $\phi$ are updated accordingly.

  Notes:

  • The correction is applied before event selections, ensuring that jet-related kinematics (jet counts, MET, etc.) are consistent.
  • The MET key depends on the year:
    • Run2 & Run3 early years: "MET"
    • 2022/2023 later years: "PuppiMET"

• MET phi modulation: The distribution of true MET is independent of $\phi$ because of the rotational symmetry of the collisions around the beam axis. However, we observe that the reconstructed MET does depend on $\phi$. The MET $\phi$ distribution has roughly a sinusoidal curve with the period of $2\pi$. The possible causes of the modulation include anisotropic detector responses, inactive calorimeter cells, the detector misalignment, the displacement of the beam spot. The amplitude of the modulation increases roughly linearly with the number of the pile-up interactions.

  This correction reduces the MET $\phi$ modulation. It is also a mitigation for the pile-up effects. (taken from https://twiki.cern.ch/twiki/bin/view/CMSPublic/WorkBookMetAnalysis#7_7_6_MET_Corrections)

• Muon corrections (Rochester Corrections): The Rochester corrections are applied to reconstructed muons to improve the agreement between data and simulation for the muon transverse momentum ($p_T$). They address two main effects:

  1. Momentum scale corrections

     • Adjust the measured muon $p_T$ to match the known $Z \to \mu\mu$ mass peak in data or simulation.
     • Applied to both data and MC.
     • Depends on muon properties: $p_T$, $\eta$, $\phi$, and charge.
     • Scale corrections are handled via correctionlib lookups, which provide parameters for the Rochester scale functions.

  2. Momentum resolution (smearing) corrections

     • In MC, the reconstructed muon resolution is generally better than in data.
     • A smearing is applied to MC muons to reproduce the observed width of the $Z$ peak.
     • Two types of smearing are used:
       • kSpreadMC: for MC muons matched to a generator-level particle.
       • kSmearMC: for unmatched muons, using the number of tracker layers and a random Gaussian factor.
     • The correction accounts for the number of tracker layers and uses a Crystall Ball function to generate random fluctuations consistent with the resolution.

  3. Uncertainty propagation

     • Both scale and resolution uncertainties are propagated.
     • In Run2, separate up/down variations are stored for systematic studies.
     • For Run3, uncertainties are applied as variations using the correctionlib parameters.

  4. MET propagation

     • Any change in the muon $p_T$ is propagated to the MET.
     • MET corrections are handled using corrected_polar_met, which adjusts the MET vector to account for muon $p_T$ shifts.

  Implementation details:

  • Run2 uses RoccoR text files and the coffea.lookup_tools.rochester_lookup class.
  • Run3 uses JSON files and correctionlib.
  • Corrections are applied before event selection to ensure kinematic quantities are consistent.
  • Original muon and MET $p_T$ values are stored in Muon.pt_raw and MET.pt_raw for reference.

• Electron Energy Scale and Smearing Corrections (Run 3 only):

  Electron corrections address the difference between the reconstructed electron energy and the true particle energy.

  • Applicability:

    • Run 3: Corrections must be explicitly applied.
    • Run 2: Already included in the NanoAOD; no additional corrections needed.

  • Problem:
    Detector effects, such as calorimeter response, material interactions, and electronics gain variations, cause reconstructed electron energies to deviate from the true electron energy. These effects depend on the electron’s:

    • Transverse momentum (pt)
    • Pseudorapidity (η)
    • Shower shape (R9)
    • Supercluster gain (for certain years/runs)

  • Correction procedure:

    1. Scale correction (data):
       • Adjusts the electron energy so that the reconstructed Z boson mass in data matches the known value.
       • Depends on run number, η, R9, and gain.
    2. Smearing (MC):
       • Adds a stochastic component to MC electrons to reproduce the resolution observed in data.
       • Uses a Gaussian random number multiplied by a pt-dependent smearing factor.
    3. Boundary checks:
       • pt values outside [20, 250] GeV or NaNs are reset to the original value.
    4. MET propagation:
       • Changes in electron pt are propagated to the PuppiMET, ensuring consistent event kinematics.

  • Implementation:

    • Corrections are applied using correctionlib JSON maps specific to each year and dataset.
    • Separate evaluators exist for scale (EGMScale_Compound) and smearing (EGMSmearAndSyst) corrections.

• Tau corrections

  Tau energy scale (TES) corrections are applied to genuine tau candidates in simulation to correct their reconstructed energy, momentum, and mass. These corrections ensure that tau kinematics match generator-level expectations and propagate consistently to event-level quantities such as MET. The corrections are applied only to relevant tau candidates:

  • Genuine taus (genmatch = 5)
  • Electrons faking taus (genmatch = 1)
  • Muons faking taus (genmatch = 2)
  • Unmatched jets faking taus (genmatch = 6)

  Selection criteria

  TES corrections are applied only to tau candidates that satisfy the following:

  • Decay modes:
    • Single-prong: 0, 1, 2, 10
    • Three-prong: 11
  • Optional pseudorapidity range: 0 ≤ |η| < 2.5

  This ensures that only physically meaningful tau candidates are corrected.

  Application

  • Preparation of raw tau quantities: Each tau candidate’s original transverse momentum and mass are stored before corrections.
  • Evaluation of scale factors: scale factors are obtained from the CMS Tau POG JSON files using the tau’s transverse momentum, pseudorapidity, decay mode, and generator-level match. Separate scale factors are available for nominal, up, and down variations to evaluate systematic uncertainties.
  • Application to tau kinematics: The tau candidate’s pt and mass are updated by multiplying by the scale factor. Both nominal values and systematic variations are stored for later analysis.

  Since the corrections modify tau transverse momentum, the missing transverse energy of the event must also be updated to maintain consistent kinematics.

Event-level corrections

We use the common json format for scale factors (SFs), hence the requirement to install correctionlib. Most of the SFs can be found in the central POG repository, synced once a day with CVMFS: /cvmfs/cms.cern.ch/rsync/cms-nanoAOD/jsonpog-integration. A summary of their content can be found here. The SF implemented are:

• Pileup SFs

• Partonshower SFs

• L1Prefiring SFs

• Electron ID, Reconstruction and Trigger* SFs

• Muon ID, Iso and TriggerIso Sfs

• Tau ID Sfs

• PileupJetId SF

• B-tagging: b-tagging weights are computed as (see https://twiki.cern.ch/twiki/bin/viewauth/CMS/BTagSFMethods)

  $$w = \prod_{i=\text{tagged}} \frac{SF_{i} \cdot \varepsilon_i}{\varepsilon_i} \prod_{j=\text{not tagged}} \frac{1 - SF_{j} \cdot \varepsilon_j}{1-\varepsilon_j} $$

  where $\varepsilon_i$ is the MC b-tagging efficiency and $\text{SF}$ are the b-tagging scale factors. $\text{SF}_i$ and $\varepsilon_i$ are functions of the jet flavor, jet $p_T$, and jet $\eta$. It's important to notice that the two products are 1. over jets tagged at the respective working point, and 2. over jets not tagged at the respective working point. This is not to be confused with the flavor of the jets.

  We can see, then, that the calculation of these weights require the knowledge of the MC b-tagging efficiencies, which depend on the event kinematics. It's important to emphasize that the BTV POG only provides the scale factors and it is the analyst responsibility to compute the MC b-tagging efficiencies for each jet flavor in their signal and background MC samples before applying the scale factors. The calculation of the MC b-tagging efficiencies is describe here, using the outputs from the btag_eff workflow

histogram_config

The histogram_config defines the histograms that the processor will produce. It specifies which variables to histogram, their binning, labels, and how axes are grouped. It also handles systematic uncertainties and weighted events.

histogram_config:
  add_syst_axis: true        # Add a "variation" axis to include systematic uncertainties
  add_weight: true           # Use weighted histograms (hist.storage.Weight)
  flow: true                 # Whether to include underflow/overflow bins
  axes:                      # Dictionary of axis definitions (one per variable)
    <axis_name>:
      type: <AxisType>       # One of: Regular, Variable, Integer, IntCategory, StrCategory
      ...                    # Parameters depending on the type
      label: <str>           # Axis label for plots
      expression: <str>      # Python expression evaluated using objects or events
  layout:                    # Defines how axes are grouped into histograms
    <histogram_name>:
      - <axis_name_1>
      - <axis_name_2>

The configuration consists of several sections:

Option	Type	Description
add_syst_axis	bool	Add a StrCategory axis called "variation" to store systematics (e.g., "nominal", "pileupUp", "pileupDown").
add_weight	bool	Use weighted histograms via hist.storage.Weight() to propagate statistical uncertainties from weighted events.
flow	bool	underflow and overflow events are placed in the first/last bin.

Axes definitions: Each axis corresponds to one variable and defines how it is binned and labeled. Supported axis types are:

Type	Description	Required Fields
Regular	Fixed-width bins over a continuous range	bins, start, stop
Variable	Custom bin edges over a continuous range	edges
Integer	Integer range for discrete binning (e.g. multiplicities)	start, stop
IntCategory	Discrete categories (e.g. 0, 4, 5 for jet flavor), optionally with growing capability	categories, growth (optional, default false)
StrCategory	String-labeled categories, typically for systematics or selections	categories, growth (optional, default false)

• Expression: Each axis must define an expression fiekd, which is a Python expression evaluated using events or objects.
• Layout: The layout defines how axes are combined into histograms
  • If set to "individual", each axis is turned into a separate 1D histogram.
    • If a dictionary is provided, e.g:

      layout:
        muon:
          - muon_pt
          - muon_eta
          - muon_phi

      a multi-dimensional histogram is built (make sure the axes have the same dimensionality)

More info on Hist histograms here

Local run

To run locally, you can use the Coffea-Casa tool, which you can accessd here (make sure to select the coffea 0.7.26 image) (more info on coffea-casa here).

Log in and clone the repository

git clone https://github.com/deoache/bsm3g_coffea.git

Then, you can use the tester.ipynb notebook to test a workflow. There, you can select the year, dataset, and executor (iterative or futures). Feel free to add more datasets in case you need to run a particular workflow (and don't forget to use root://xcache// in order to be able to access the dataset).

This way, you can check that the workflow is running without issues before submitting batch jobs. It also allows you to interact with the output to check that it makes sense and contains the expected information.

Submit Condor jobs

1. Log in to lxplus and clone the repository

If you haven't done so already:

ssh <your_username>@lxplus.cern.ch

git clone https://github.com/deoache/bsm3g_coffea.git
cd bsm3g_coffea

2. Initialize a valid CMS grid proxy

To access remote datasets via xrootd, you need a valid grid proxy.

To generate the proxy:

voms-proxy-init --voms cms

If you're not registered in the CMS VO, follow these instructions to request access.

3. Submit all datasets from a workflow

Use runner.py to submit jobs for a specific workflow and campaign/year.

python3 runner.py --workflow <workflow> --year <campaign> --submit --eos

You could use submit_condor.py to submit jobs for a specific dataset:

python3 submit_condor.py --workflow <workflow> --dataset <dataset> --year <campaign> --submit --eos

Note: It's recommended to add the --eos flag to save the outputs to your /eos area, so the postprocessing step can be done from SWAN. In this case, you need to clone the repo before submitting jobs in SWAN (select the 105a release) in order to be able to run the postprocess.

4. Monitor job status

To continuously monitor your Condor jobs:

watch condor_q

To get a summary of missing, failed, or incomplete jobs, and optionally resubmit them, use:

python3 jobs_status.py --workflow <workflow> --year <campaign> --eos

It can also regenerate filesets and resubmit jobs if needed.

Postprocessing

Once the Condor jobs are completed and all outputs are saved under the outputs/ directory, you can run run_postprocess.py to aggregate results, compute cutflows, and generate plots

python3 run_postprocess.py --workflow <workflow> --year <year> --postprocess --plot --log --eos

After running post-processing for the two campaigns of a particular year, you can use the same command (e.g. --year 2016) to automatically combine both campaigns and compute joint results and plots.

Results will be saved to the same directory as the output files.
