Prototype_Arduino_CANSAT

• Prototype of CANSAT which will be launched on August 2021.
• Prototype of CANSAT which will be exhibited during Capstone Event on January 2021.

Caution

'sketchs' must be executed with 'libraries' folder of Arduino.

Missions

Satellite

• Read Pitch, Roll, Yaw(PRY) value and send it to Ground-Control.

Ground-Control

• Connect with Satellite by using Bluetooth or Wifi.
• Print the PRY value transmitted from Satellite.
• Draw the position of CANSAT using PRY value.

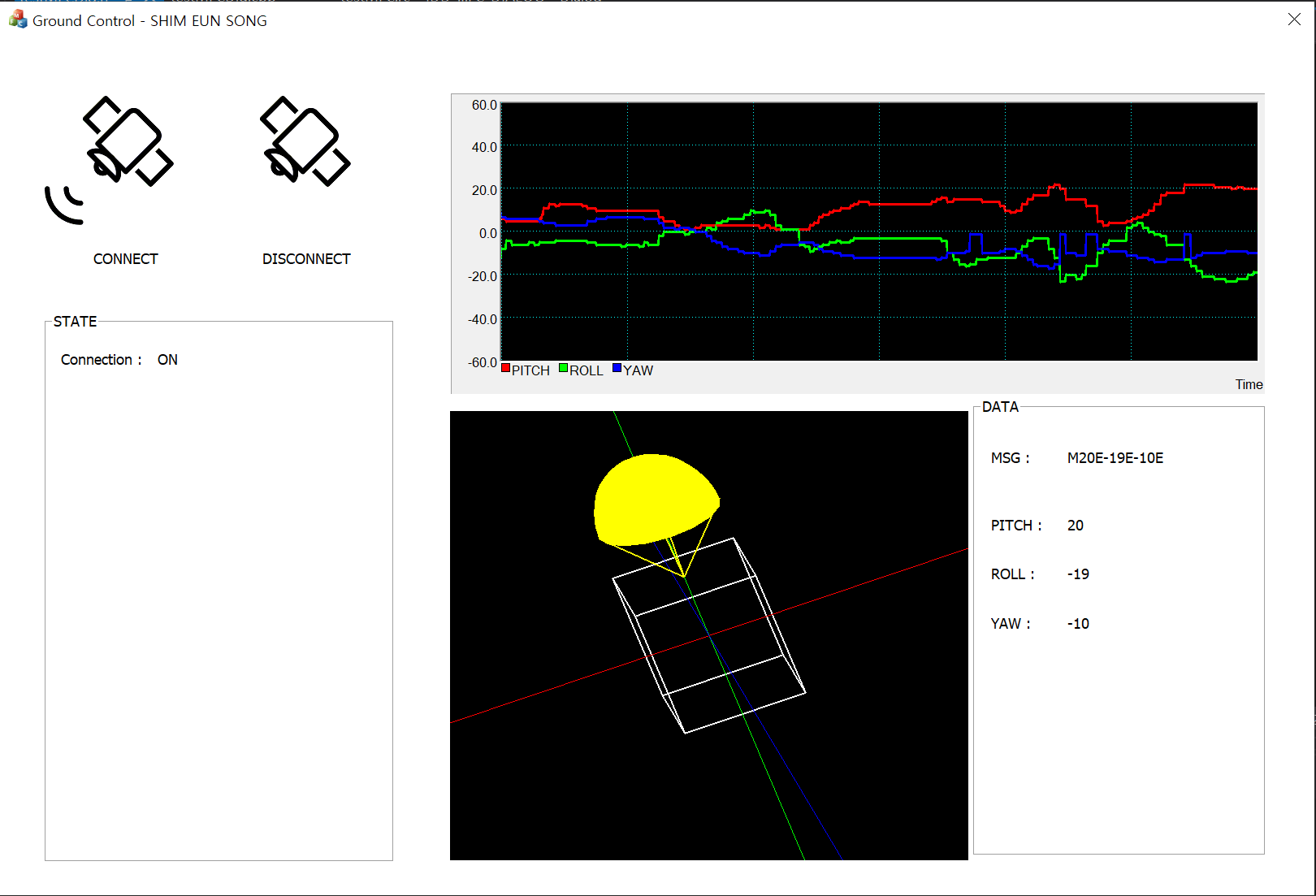

Example screen

Version

Released version 0.0.0 (2020 08 01) :
Base file was uploaded

Released version 0.0.1 (2020 08 03) :
Test Serial Communication with Arduino and Ground_Control by using USB port (COM3)

Released version 0.0.2 (2020 08 08) :
Function added, Bluetooth Serial Communication! We can do this with wireless (COM5)

Released version 0.0.3 (2020 08 14) :
MFC Oscilloscope function was added, but it's just a test-version yet.

Released version 0.0.4 (2020 08 19) :
Complete comm department, it can show the values from Oscilloscope!

Released version 0.1.0 (2020 08 28) :
RealTime postion is printed in OpenGL from oscilloscope value! openGL confirm.

Released version 0.1.1 (2020 09 01) :
3D-Cube, parachute are printed in openGL replecting LDR value.

Released version 0.1.2 (2020 09 09) :
Position of cansat is printed in openGL replecting pitch, roll, yaw. it's first prototype version!

Released version 0.1.3 (2020 09 15) :
Renovation of .ino, the position of cansat is printed precisely more than before.

Released version 0.1.4 (2020 09 28) :
Each of P, Y, R is printed.
