This repository contains open-source KiCad assets for the YD-ESP32-S3 module by VCC-GND Studio, popular on AliExpress due to its lower cost compared to the "original" Espressif's ESP32-S3-DevKitC-1.
It took me a good few hours to locate those in various places, fix errors and piece them together, so I thought I'd save you a hassle.
| File | Description | Source and Credits |
|---|---|---|
YD-ESP32-S3.kicad_sym |
KiCad symbol | Me |
YD-ESP32-S3.kicad_mod |
KiCad footprint | Converted from an Altium Designer file shared by the board manufacturer |
YD-ESP32-S3.step |
3D model in STEP format | Created by David Scambell, available at GrabCAD. See below for alignment values ↓↓↓ |
Source: VCC-GND Studio's GitHub
- OEM's documentation (Chinese): https://github.com/vcc-gnd/YD-ESP32-S3

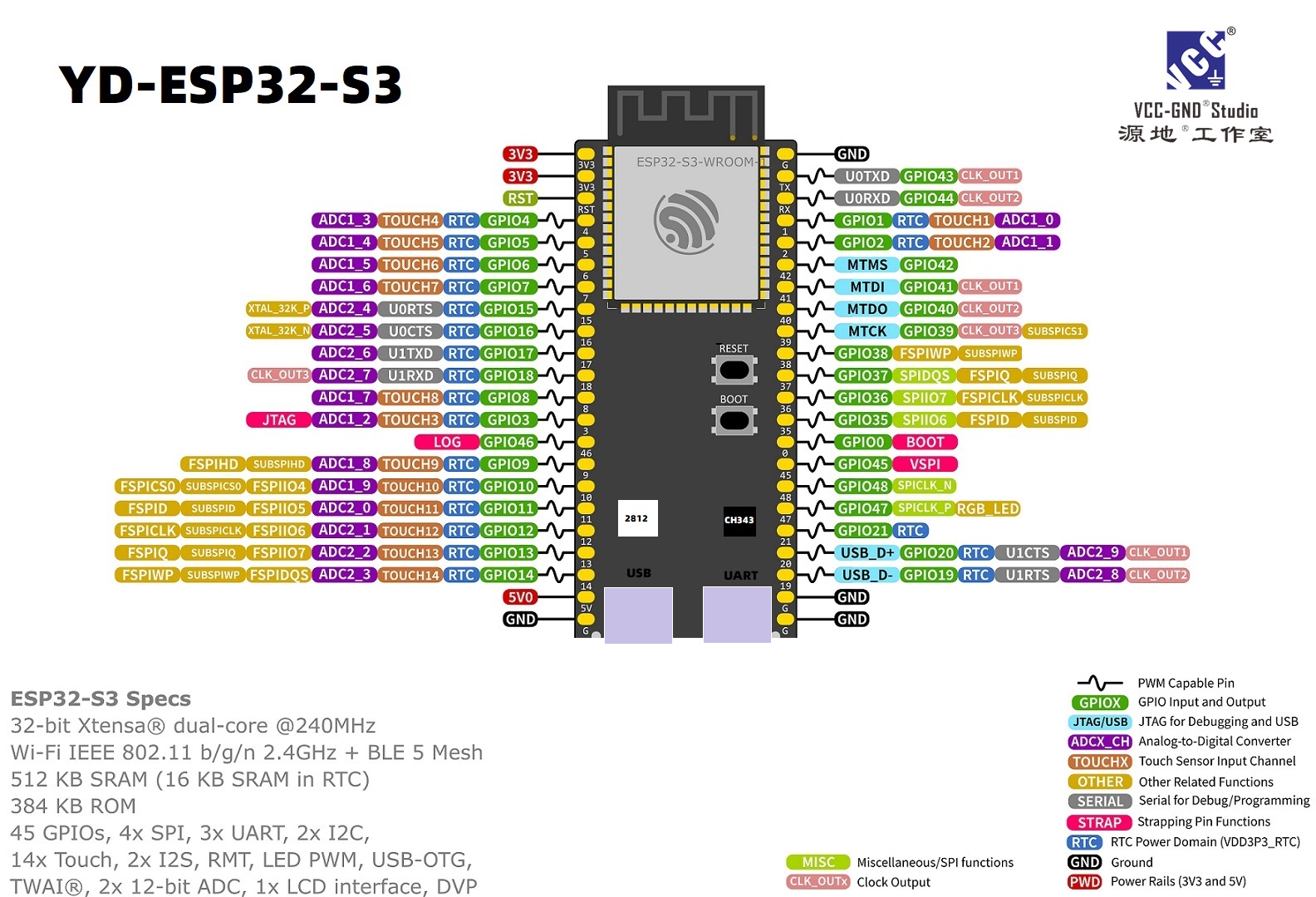

- High-resolution pinout and detailed board specs (Renzo Mischianti): https://mischianti.org/vcc-gnd-studio-yd-esp32-s3-devkitc-1-clone-high-resolution-pinout-and-specs/
- 3D model by David Scambell at GrabCAD: https://grabcad.com/library/yd-esp32-s3-1
These files are provided under the MIT Licence, unless the module manufacturer’s licensing requires otherwise. Please check and update if necessary.
These KiCad assets are provided as-is. Always verify dimensions, pinouts, and clearances against the official datasheet before manufacturing PCBs.
