fix(android): keep the server switcher centred over the chat column, clear of header controls

[btli]

Related issue

Closes #3586

Summary

The Android server-picker pill is a native TextView stacked above the WebView, so wherever it sits it swallows touches. Laid out Gravity.TOP or CENTER_HORIZONTAL it centres on the whole window with no knowledge of the web layout beneath it, and lands on the conversations rail's Search / Settings / Collapse controls.

With rail width S, window width W and half-pill-width p, the controls span x ∈ [S-88, S-8] and the pill x ∈ [W/2-p, W/2+p], so they collide iff W/2 - p + 8 < S < W/2 + p + 88:

hostname	collides for	at the 320px default
10.0.2.2:8000 (p≈50dp)	342 < S < 906	just misses — any widened rail lands in it
omnigent.joyful.house (p≈77dp)	315 < S < 933	collides immediately
any	at S = W/2 the controls end at W/2-8	always collides

Vertically they always overlap, so horizontal position is the only variable — hence "only when the resolution is just right".

The fix: the web publishes the free horizontal band and native centres the pill inside it.

• The band is the chat column (<main>, between the two rails). or the content region when that column is too narrow to host a usable pill (revised: a too-narrow or obscured column now hides the pill instead of borrowing the content region — see Revision below).
• Bounds travel as fractions of the viewport, so a band applied after a rotation or fold can't place the pill off-screen. Native validates finiteness/range/ordering, clamps the result inside its parent, and holds the pill at a 48dp recovery floor.
• Positioning is driven by the pill's layout, its parent's layout, insets, config changes and band updates — a retained Activity resized without a new band still re-centres.
• No message ⇒ today's whole-window centring, so older web bundles are exactly as they were.

Why not hide the pill while the rail is open (the obvious cheaper fix): the rail is open by default at ≥768px, and MainActivity.kt documents the pill as the always-available recovery path — the only entry to showServerSwitcherMenu. Hiding it would remove the recovery control by default on every tablet. Two independent reviewers ranked re-centring first and hiding last for that reason. (Revised: blanket hiding is still rejected for that reason, but the follow-up commits hide it in the narrow cases where showing it is worse — see Revision below.)

Also included: the pill's width is capped to the iOS ceiling with middle-ellipsis (the full host stays in the content description and the menu), and a separate, independently droppable commit fixes a pre-existing bug where onConfigurationChanged discarded the Configuration it was handed, so status/nav bar icon polarity could lag a light/dark switch.

ELI5: the picker is a native button floating over the web page. It sat in the middle of the screen — which is where the sidebar's buttons are once the sidebar is wide enough — and being a native button it ate the taps. Now the page tells it where the free space is.

Revision (Aug 5) — adversarial-review follow-ups

Three commits (fed7a2cf, 5f77e9d5, b7ae1a6c) extend the band mechanism after review found the pill could still cover the chat header's own find / settings / collapse controls (the band cleared the rails, but the header overlay lives inside the chat column):

• 48dp control reserve: the pill now centres within the band minus a 48dp reserve at each edge, so it cannot sit on the header's edge controls at any band width. A stale (wider) pill anchors at the reserved edge, never past it.
• Targeted hiding replaces the content-region fallback: an unusable band (narrower than the pill floor plus reserves), a collapsed chat column, or a full-screen overlay above it now hide the pill (web-driven setServerSwitcherHidden) instead of borrowing an adjacent surface whose own controls it would then cover. Whole-window centring for old bundles is unchanged.
• Clamped publication: the web hook clamps published fractions to the viewport and hides on overlay/collapse; the fallback comment that claimed the content region was always safe was wrong and is gone.
• Tests: reserve arithmetic is mutation-verified with an asymmetric band (a symmetric band centres identically with or without the reserve, so it cannot detect a dropped reserve); placement asserts are computed from the measured pill rather than hardcoded pixels. Branch verification: web 4,807 green; Android 55/55.

Test Plan

• ./gradlew testDebugUnitTest --rerun-tasks — 47 tests, 0 failures. Covers the band arithmetic (centring, inward rounding, containment, clamping at both parent edges, pill wider than band, pill wider than container), the bridge dispatch validation (missing / wrong-type / non-finite / out-of-range / reversed fractions), navigation-start reset, RTL placement, width bounds, and the parent-resize and equal-band repositioning paths.
• npx vitest run src/shell/AppShell.test.tsx src/lib/nativeBridge.test.ts — 141 passed. Covers band source selection and its 63/64px boundary, the off-shell no-op, republication on observed resizes, animation-frame coalescing per event source, observer cleanup, and publication after a late bridge install.
• Every fix in this PR was mutation-checked — the test is reverted and the suite must go red before the fix is accepted. Reverting the parent clamp fails 3 tests; the RTL gravity, the recovery floor, the band-source threshold (and its off-by-one), the equal-band skip, the parent layout listener, and the bar-polarity config each fail their own test. Several tests in early revisions passed under mutation and were rewritten until they didn't.
• Reviewed by three independent engines (gpt-5.6-sol, Grok 4.5, Gemini 3.1 Pro) over six rounds; all three report clean on the final state.

Demo

Recorded on an Android emulator at 800×1280 @ 160dpi (an 800dp-wide viewport, i.e. the md+ layout with the conversations rail docked and open by default), connected to a local server.

Before (main APK)	After (this PR)

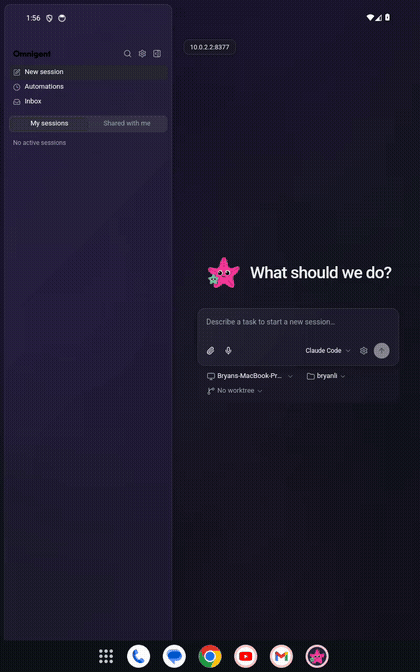

Before: at the default rail width the window-centred pill just misses the rail's Search / Settings / Collapse controls; dragging the rail wider slides them underneath it, and tapping Settings opens the native server-switcher menu instead — the tap never reaches the web UI. After: the pill centres over the chat column, visibly re-centres live while the rail is dragged wider, and the same tap opens Settings. Full-resolution MP4s on the asset branch.

The "after" capture also exercises the real web→native round trip: the served bundle publishes the band and the native pill repositions from it, while the "before" APK against the same bundle ignores the band — confirming old-APK compatibility in the other direction.

Type of change

• Bug fix
• Feature
• UI / frontend change
• Refactor / chore
• Docs
• Test / CI
• Breaking change

Test coverage

• Unit tests added / updated
• Integration tests added / updated
• E2E tests added / updated
• Manual verification completed
• Existing tests cover this change
• Not applicable

Coverage notes

The geometry, the bridge validation and the web publisher are unit-tested, and every fix is mutation-checked as described above.

The web↔native round trip is now also exercised live on an emulator (see Demo): the served bundle publishes the band, the native pill repositions from it, and the touch handoff before/after is observed directly. Not yet verified on physical foldable hardware (fold/unfold configuration changes in particular).

Two deliberate scope decisions, called out so a reviewer can overrule them:

1. Old web bundles are unimproved (not regressed). A bundle predating this PR never calls the new bridge method, so the pill keeps its whole-window centring there. Covering it would mean a DOM-querying JS publisher embedded in the Kotlin-injected script — a meaningful scope expansion over the reported bug, and harder to test than the existing static-stylesheet precedent.
2. The iOS shell has no consumer for the published band. The web half publishes to it, but the Swift side needs a simulator to verify and belongs in its own PR.

Adversarial review of this change also surfaced four pre-existing defects in the Android shell, none of them regressions from this PR and none touched by it — filed separately rather than folded in: #3730 (renderer death terminates the app), #3731 (the pill's touch target is ~27dp tall), #3732 (a Display-size change leaves the pill's metrics at the old density), #3733 (the hardcoded 25px switcher height desyncs the scroll-fade at large font sizes). #3731 and #3733 are worth reading alongside this PR since they concern the same view: this change floors the pill's width at 48dp, which is a different axis from #3731's height problem, and adds isSingleLine, which improves #3733's constant without making it correct.

Changelog

The Android server picker no longer covers the conversation rail's search, settings and collapse buttons

[btli]

Withdrawing — this isn't the right fix for the picker overlap; a different approach is coming.

[btli]

This is the different approach promised when the PR was withdrawn — suggesting reopen. Pushed 3 commits:

• The pill positions inside the chat-column band minus a 48dp control reserve at each edge, so it can no longer sit on the header's find/settings/collapse controls.
• It hides (web-driven setServerSwitcherHidden, or an unusable band) instead of borrowing an adjacent surface.
• The web hook clamps published fractions to the viewport and hides on overlay/collapse instead of falling back to the content region (whose comment claimed a safety it didn't have).
• Includes a mutation-verified reserve test: a symmetric band centres identically with or without the reserve, so an asymmetric band is pinned too.

Verification: web 4,807 green; Android 55/55 on this branch's base.

---

Recommended merge order — this PR is one of seven fixed and verified together; the fully integrated reference (all cross-PR conflicts resolved, 5,003 web tests + 273/273 Android tests green) is btli:test-android-ui-integration @ 3fa45ff3.

Android track (suggest landing first — security fixes, and the later two resolve against it):

1. fix(android): sign in to servers behind front-door auth proxies (Databricks Apps) #3800 — no dependencies
2. fix(web): keep the Workspace rail clear of the OS status and nav bars #3587 — rebase after fix(android): sign in to servers behind front-door auth proxies (Databricks Apps) #3800: it picks up applySystemBarContrast(Configuration), which fixes this branch's one pre-existing Robolectric failure; and since main now has flush rails (feat(web): make the rails flush boxes and move the canvas gradient #4020), the rebase should also drop the stale +16 from --workspace-panel-offset (see integration commit 8b687d7c)
3. fix(android): keep the server switcher centred over the chat column, clear of header controls #3589 — after fix(android): sign in to servers behind front-door auth proxies (Databricks Apps) #3800: both add constructor callbacks to OmnigentBridgeListener; union them (resolution in integration merge 3fa45ff3)

Web track (file-disjoint from the Android track; order within it matters):
4. #3985 — base swipe-actions feature
5. #4060 — folder context menu
6. #4057 — mobile ungroup drop zone
7. #4065 — hold: superseded by the unified row-gesture recognizer, which builds on #3985 and interacts with #4057/#4060; after 4–6 land, update it to the recognizer commits (69a8ada5, bf597b87, e388aacf, reachable on the integration branch)

[btli]

This PR is part of a stacked train rebased onto current main so the whole set merges conflict-free in order. Full order: #3985 → #4065 → #4060 → #4057 (web/Sidebar train) and #3587 → #3589 → #3800 (android train). The two trains are independent of each other.

This PR is 2nd in the android train, stacked on #3587. Until its predecessors merge, this PR's diff temporarily includes their commits; it collapses to a clean, self-contained diff automatically as each predecessor lands.

[github-actions]

Closed. If you want to pick this back up, comment /reopen. GitHub only lets maintainers press the Reopen button, so this command does it for you. It needs the source branch to still exist.

[btli]

Closing this in favour of the pattern that landed in #4551. Recording why, plus an audit of where each shell's picker actually stands on main today, so whoever picks up the mobile half doesn't re-derive it.

Why the band approach is superseded

The mechanism proposed here — the web publishing a free horizontal band as viewport fractions, native centring the pill inside it minus a 48dp control reserve — is not in the tree. A current-tree search for setServerSwitcherBand / serverSwitcherBand returns zero matches under web/src, web/android, and web/ios. So none of the geometry, the reserve arithmetic, or the targeted-hiding follow-ups (fed7a2cf, 5f77e9d5, b7ae1a6c) are live.

#4551 (merged as 6ac1c6045) fixed the same class of bug on desktop with far less machinery: instead of teaching native where the free space is, move the picker out of the contested strip entirely and dock it at the bottom of the conversations sidebar. No published geometry, no reserve, no clamping, no per-rotation revalidation — the overlap is structurally impossible because the control no longer shares a strip with the chat header.

That is the better trade. The band design's whole cost centre was keeping two coordinate systems in sync across rotation, fold, rail drags, and old-bundle compatibility. Docking deletes the coupling rather than validating it.

Where each shell stands today

Desktop (Electron) — fixed by #4551.

• web/src/shell/SidebarServerPicker.tsx, mounted at web/src/shell/Sidebar.tsx:945-949, pinned below the session list.
• TitleBarServerPicker.tsx is deleted; web/src/shell/AppShell.tsx:1550-1554 keeps only a comment explaining why the strip is now pure drag surface.
• Gates on the picker IPC resolving (getServerPicker() non-null, SidebarServerPicker.tsx:57-78), not isMacElectronShell() — so Windows/Linux desktop gained a picker, and plain browsers render nothing (nativeBridge.ts:669-677).
• Adds GET /.well-known/omnigent.json (omnigent/server/app.py:1704-1763) advertising "ui": {"server_picker": "sidebar"}, fetched pre-SPA by the shell (web/electron/src/url.js:233-278) with every failure mode — 404, HTML content-type, malformed JSON, non-numeric manifest_version — degrading to a manifest_version: 0 baseline.

Android — still exactly the state this issue describes. #4551 touched zero Android files.

• The picker is a native Kotlin TextView pill in a FrameLayout above the WebView: declared MainActivity.kt:92-95, built :190-202, menu showServerSwitcherMenu :580-623.
• Laid out Gravity.TOP or Gravity.CENTER_HORIZONTAL (:203-213) with topMargin = bars.top + 8dp from the insets listener (:254-257) — i.e. window-centred, with no knowledge of the web layout beneath it, which is the original defect.
• isClickable = true at elevation = 6dp (:199-200), created in onCreate and never hidden — so its top-centre bounds are permanently unreachable for the web UI.
• Android's bridge listener handles only setColorScheme, setBadgeCount, notify (OmnigentBridgeListener.kt:48-80). It does not even implement iOS's setServerSwitcherHidden.
• No reader of /.well-known/omnigent.json or ui.server_picker anywhere under web/android/.

iOS — same shape as Android, but with a visibility escape hatch.

• Native SwiftUI ServerSwitcher in a top-aligned ZStack over the WKWebView (WebShellView.swift:23-33, component at :115-127), 8pt top padding (:43-46).
• It deliberately floats within the ChatHeader band — the shared CSS documents that the switcher's footprint is not added to the content top inset (web/src/index.css:182-186, :205-214).
• Width is min(172, max(120, containerWidth * 0.38)) (WebShellView.swift:200-201) — so the "iOS ceiling" this issue's body cites is 172pt, single line, middle truncation (:161-180).
• iOS does consume setServerSwitcherHidden (OmnigentWebView.swift:255-263, :447-448), and the web hides it on non-chat surfaces via useNativeServerSwitcher.ts:80-93 (iOS-gated at :86). There is no band consumer.
• No manifest reader under web/ios/.

What following #4551 means for mobile

The desktop fix isn't directly portable as-is — two gaps:

1. getServerPicker() is Electron-only. It probes electronApi(), which requires window.omnigentDesktop.kind === "electron" (nativeBridge.ts:346-350, 669). Mobile exposes window.omnigentNative with kind: "ios"/"android", so SidebarServerPicker resolves null and renders nothing in both WebViews today. Adopting the sidebar picker on mobile means giving the native bridges a getServerPicker / switchServer / openServerSetup equivalent — both shells already have the native halves (ServerStore.offeredServers() on Android, the recents menu on iOS).
2. The sidebar picker is drawer-coupled. At < md the conversations <aside> is a full-screen overlay that is -translate-x-full + inert when closed (Sidebar.tsx:719-754), and it isn't mounted at all under /settings. So on a phone the picker is reachable only while the drawer is open. That's precisely the objection this issue raised against blanket-hiding the pill — the pill is documented as the always-available recovery path (MainActivity.kt:92-95).

Net: the resolution is (1) port the picker IPC to the native bridges, (2) render the sidebar picker on mobile, and (3) then hide the native pill — the objection to hiding it evaporates once a web-side picker exists as the recovery path, and hiding needs only the boolean setServerSwitcherHidden iOS already implements, not band geometry. Android needs that one bridge method; iOS needs none. An always-reachable entry for the collapsed-drawer / settings case still needs a decision.

Leaving this closed — say the word if you'd rather it stay open as the tracking issue for the mobile half, or I can file a fresh issue scoped to the three steps above.
