MINI-Disassembler 🚀

A lightweight and simple disassembler, initially developed out of curiosity, bcz i was bored, this took me 5 days, but i want to keep up updating it <3

✨ Key Features

• 📊 Graphical Control Flow View: Generates and displays function control flow graphs using Graphviz, making program logic easier to understand.
• 💻 Sequential Instruction Listing: Presents disassembled instructions in a clear, sequential format.

🛠️ Technologies & Libraries Used

This project utilizes the following libraries and tools:

• Graphical User Interface (UI):
  • ImGui: Bloat-free graphical user interface library for C++.
  • ImGui Standalone: We dont want the window right?
• Disassembly Engine:
  • Zydis (v3.2.1): Fast and lightweight x86/x86-64 disassembler library.
  • Zycore (v1.3.0): Utility library for Zydis.
• Graph Visualization:
  • Graphviz (v10.0.1): Graph visualization software and libraries.
• Package Manager:
  • VCPKG: Used to install and manage dependencies.

⚙️ Prerequisites

• Git (if you want or else you can download source directly from here btw)
• VCPKG installed and integrated.
• Visual Studio with the "Desktop development with C++" workload installed.

🔧 Installation & Building (Windows x64)

Follow these steps to build the project:

1. Clone the repository:

   git clone https://github.com/your-username/MINI-Disassembler.git # Replace with your actual repo link
   cd MINI-Disassembler

2. Install Dependencies using VCPKG:

   • Important Note for Zydis v3.2.1: VCPKG might have a newer version of Zydis by default. To install the specific version 3.2.1 required by this project, you need to manually acquire the correct port files:
     1. Go to the VCPKG GitHub repository history.
     2. Find the commit corresponding to Zydis version 3.2.1.
     3. Download the ports/zydis and ports/zycore folder from that specific commit.
     4. Replace the existing zydis/zycore folders inside your local VCPKG installation directory with the downloaded version.
   • Now, install the dependencies:

     # Ensure you are in your VCPKG directory or have it in your PATH
     vcpkg install zydis
     vcpkg install graphviz

3. Compile the Project using Visual Studio:

   • Open the project folder or solution file (.sln) in Visual Studio.
   • Select the Release configuration and x64 platform from the configuration dropdowns.
   • Build the solution

🚀 How to Use

1. Run the compiled executable (e.g., x64/Release/MINI-Disassembler.exe).

📸 Preview

Here are some screenshots of MINI-Disassembler in action:

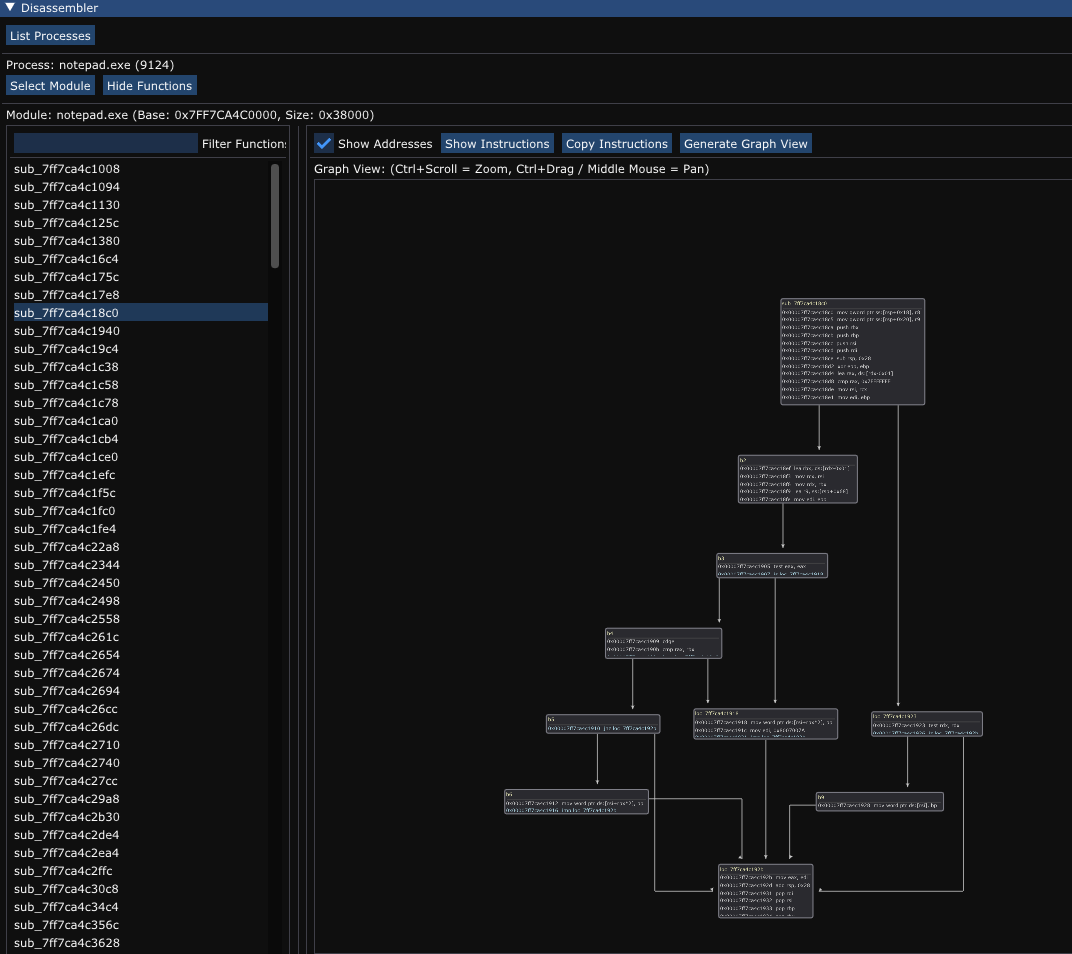

Figure 1: Processes

Figure 2: Modules

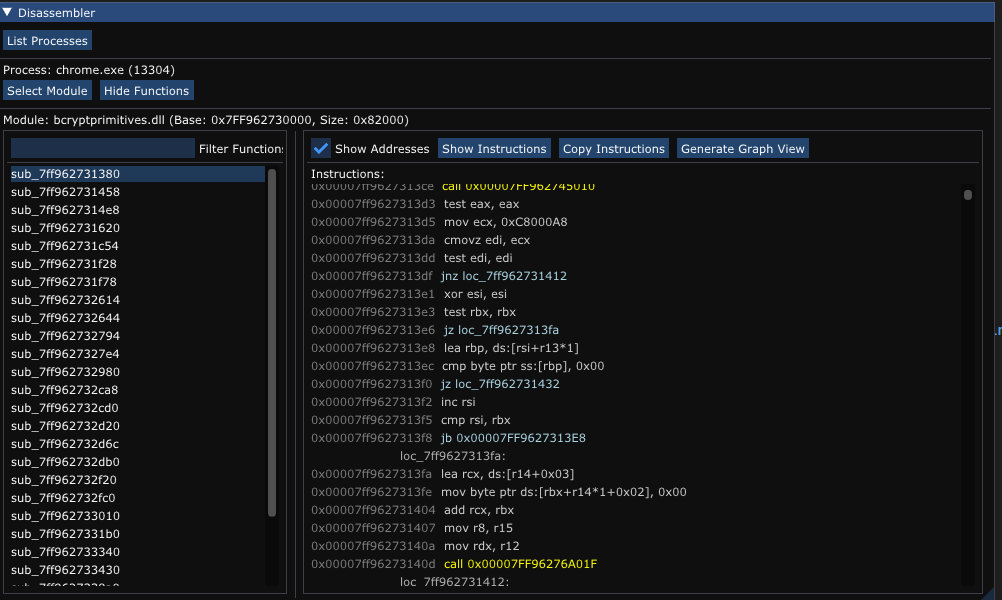

Figure 3: Instructions View

Figure 4: Another View

🤝 Contributing

Contributions are welcome! If you have ideas for improvements, bug fixes, or new features:

1. Fork the project.
2. Create your feature branch (git checkout -b feature/AmazingFeature).
3. Commit your changes (git commit -m 'Add some AmazingFeature').
4. Push to the branch (git push origin feature/AmazingFeature).
5. Open a Pull Request.

You can also simply open an issue with the tag "enhancement" or "bug".
