A main problem that exists in autonomous driving is how to integrate V2X communications with the vehicle autonomous control, Autoware. This is difficult because of the different nature of each approach, one through brokers for the V2X messaging, such as MQTT, DDS, and Zenoh, and the other through ROS for the autonomous control.
This project implements a Vehicle Programming Interface (VPI) that connects Autoware's ROS topics to external systems such as MQTT, DDS, and Zenoh, enabling seamless data exchange and V2X messaging without requiring deep knowledge of Autoware's internal stack.
VPIs are designed to manage various aspects of vehicle hardware, data, computation, services, and system management for autonomous vehicles. They were first introduced in Wu BF, Zhong R, Wang Y, et al. VPI: Vehicle Programming Interface for Vehicle Computing. Journal of Computer Science and Technology 39(1): 22–44, Jan. 2024. DOI: https://10.1007/s11390-024-4035-2.
This work has been published in João Amaral, Andreia Figueiredo, Pedro Rito, Susana Sargento, Cooperative V2X Communications and Sensing for Autonomous Mobility, 2025 IEEE 3rd International Conference on Mobility, Operations, Services and Technologies (MOST), Delaware (USA), May 2025. DOI: https://10.1109/MOST65065.2025.00033.
This VPI enables:
- Gathering detailed status updates on the vehicle’s internal state, such as position, speed, and detected objects, and makes this information available for use by external systems.
- External commands to influence the vehicle’s behavior by modifying the control stack, ensuring that real-time data from external sources can be processed and acted upon.
This VPI was developed and tested using the PIXKIT 2023.04 release of Autoware.
If you find this code useful in your research, please consider citing:
@INPROCEEDINGS{11071413,
author={Amaral, João and Figueiredo, Andreia and Rito, Pedro and Sargento, Susana},
booktitle={2025 IEEE 3rd International Conference on Mobility, Operations, Services and Technologies (MOST)},
title={Cooperative V2X Communications and Sensing for Autonomous Mobility},
year={2025},
volume={},
number={},
pages={229-240},
keywords={Scalability;Urban areas;Microservice architectures;Transportation;Sensors;Safety;Vehicle dynamics;Low latency communication;Vehicle-to-everything;Autonomous vehicles;Autonomous Mobility;V2X;DDS;SDV;Microservices},
doi={10.1109/MOST65065.2025.00033}}
The VPI is designed to work in environments with Autoware, containing the following modules:
This module is designed to process information about the vehicle’s pose, including the position, orientation and movement metrics, transforming it into a standardized format that can be used by external services.

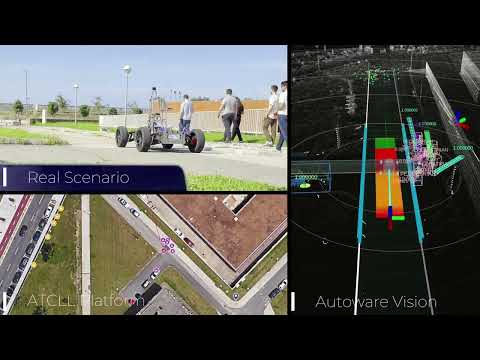

This module is responsible for converting the data produced by the vehicle’s perception systems into a standardized format that can be shared with external systems .

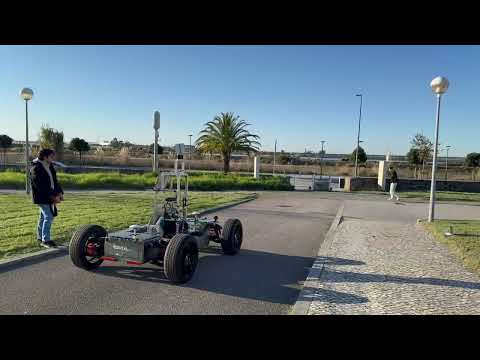

The Braking Service module is a specialized addition to the VPI, designed to interface with the emergency braking functionality of the Autoware framework. It works by processing incoming braking messages from MQTT and DDS domains and calling the internal Autoware emergency braking service based on the provided input.
This VPI is deployed through a Docker container that contains all the necessary dependencies and configurations to run the VPI modules. Follow the steps below to deploy the VPI:
- Clone the repository:
git clone https://github.com/nap-it/autoware_vpi.git
- Go to the cloned directory:
cd autoware_vpi
- Run the following command to build the Docker image:
docker build -t autoware_vpi:latest .
- Start the Docker container with the following command:
docker compose up -d
- Access the Docker container's logs with:
docker compose logs -f
-
The
start_all.shscript is used to launch all the VPI internal modules in the background when the Docker container starts. By default, all modules are enabled. This is where you can edit the ROS_DOMAIN_ID and RMW_IMPLEMENTATION that connects to Autoware. -
The
config.inifile is used to configure each of the VPI's internal modules. By default, all modules are configured to connect to DDS domain ID 0 and MQTT host at127.0.0.1. -
For the [pose-converter]:
[pose-converter]
dds_domain_id=0
debug=0
reference_latitude=0.0 ; autoware map origin latitude
reference_longitude=0.0 ; autoware map origin longitude
mqtt_host=127.0.0.1 ; mqtt host to publish messages
- For the [objects-converter]:
[objects-converter]
dds_domain_id=0
debug=0
reference_latitude=0.0 ; autoware map origin latitude
reference_longitude=0.0 ; autoware map origin longitude
ignore_unknown_objects=true ; don't publish objects with unknown classification
mqtt_host=127.0.0.1 ; mqtt host to publish messages
- For the [braking-service]:
[braking-service]
dds_domain_id=0
debug=0
mqtt_host=127.0.0.1 ; mqtt host to subcribe to messages
- To gather the vehicle's pose information, subscribe to the DDS/MQTT topic aw/out/pose which contains the following information:
{
sequenceNumber: int, // for messate integrity
latitude: float,
longitude; float,
speed: float,
acceleration: float,
heading: float,
heading_rate: float,
twist_ang_z: float, // angular velocity
cov_twist_ang_z: float // angular velocity covariance
}
Note: The latitude and longitude are calculated based on the reference position defined in the configuration file on the parameters reference_latitude and reference_longitude. This reference position should match the origin of the Autoware map being used.
- To gather information about the vehicle's detected objects, subscribe to the DDS/MQTT topic aw/out/objects which contains the following information:
{
sequenceNumber: int, // for messate integrity
objects: [
{
heading: float,
cov_heading: float,
latitude: float,
longitude; float,
speed: float,
cov_speed: float,
sensorID: int,
objID: int,
size_x: float,
size_y: float,
size_z: float,
x: float, // distance in meters to the reference position in relation to true North
y: float, // distance in meters to the reference position in relation to true East
z: float, // altitude in meters
cov_x: float,
cov_y: float,
cov_z: float,
twist_ang_z: float,
cov_twist_ang_z: float,
classification: int,
confidence: int
},
(...)
]
}
- To call the Autoware's internal emergency braking service through the VPI, publish the following message to the DDS or MQTT topic aw/in/brake:
{
brake: boolean, // true to engage the emergency braking, false to resume normal operations
}
For example, run the following command in the terminal to engage the emergency braking while Autoware and the VPI are running:
mosquitto_pub -t 'aw/in/brake' -m '{"brake":true}'
We thank I2CAT for their valuable feedback and contributions to the development and documentation of this VPI.
autoware_vpi is licensed under LGPLv3, see license file for details.
