Segmented Button Card

A dependency-free custom Lovelace card for Home Assistant that renders a Material Design 3 style segmented button control bound to an input_select helper.

Features

• Binds directly to an input_select helper entity. It'll create one segment per option in the bound input_select
• Lets you edit the displayed text and icon for each option
• Lets you remove unwanted options from the card without having to remove them from the input_select
• Responsive segmented layout with selected-state styling inspired by Material Design 3
• Built-in visual Lovelace config editor for entity and segment rows

Install

HACS

1. Add this repository in HACS as a custom repository of type Dashboard.
2. Install the card from HACS.
3. HACS will install the Lovelace resource for you and serve it from /hacsfiles/ha-segmented-button-card.js.
4. Edit your dashboard, and add a new Segmented Button Card

Manual install

1. Copy ha-segmented-button-card.js to a location served by Home Assistant, such as /config/www/.
2. Add the resource in Lovelace:

resources:
  - url: /local/ha-segmented-button-card.js
    type: module

3. Reload the dashboard and add a new Segmented Button Card

Screenshots

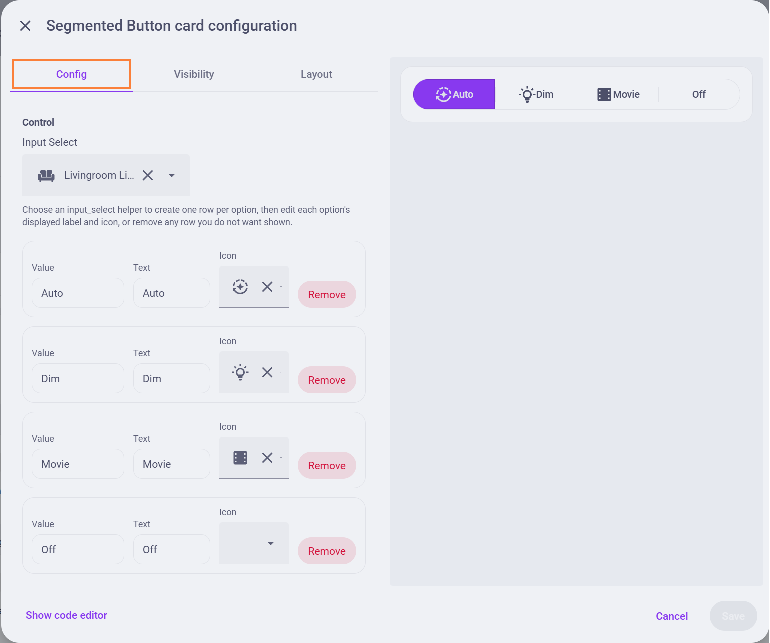

Config Editor

Dashboard Card

Example

type: custom:ha-segmented-button-card
entity: input_select.climate_mode
segments:
  - value: Off
    text: Off
    icon: mdi:power
  - value: Heat
    text: Heat
    icon: mdi:fire
  - value: Cool
    text: Cool
    icon: mdi:snowflake
