dgiot_dtu

dgiot_dtu is a desktop utility on the edge side of the dgiot industrial IoT overall solution

• Can be deployed on the corporate intranet, through multiple dgiot_dtu mqtt/tcp/udp hierarchical methods, open up the communication channel between the corporate intranet and the cloud server
• Converge data from old industrial systems such as serial port/PLC/OPC/BACNet/UI/Access/SqlServer in the corporate intranet into the cloud dgiot service
• Realize automatic scanning tools for OPC/OPC/BACNet/UI/Access/SqlServer, etc. to realize remote construction and operation and maintenance services
• Cooperate with the channel in the cloud dgiot server to realize automatic data collection, protocol analysis, data storage and display functions

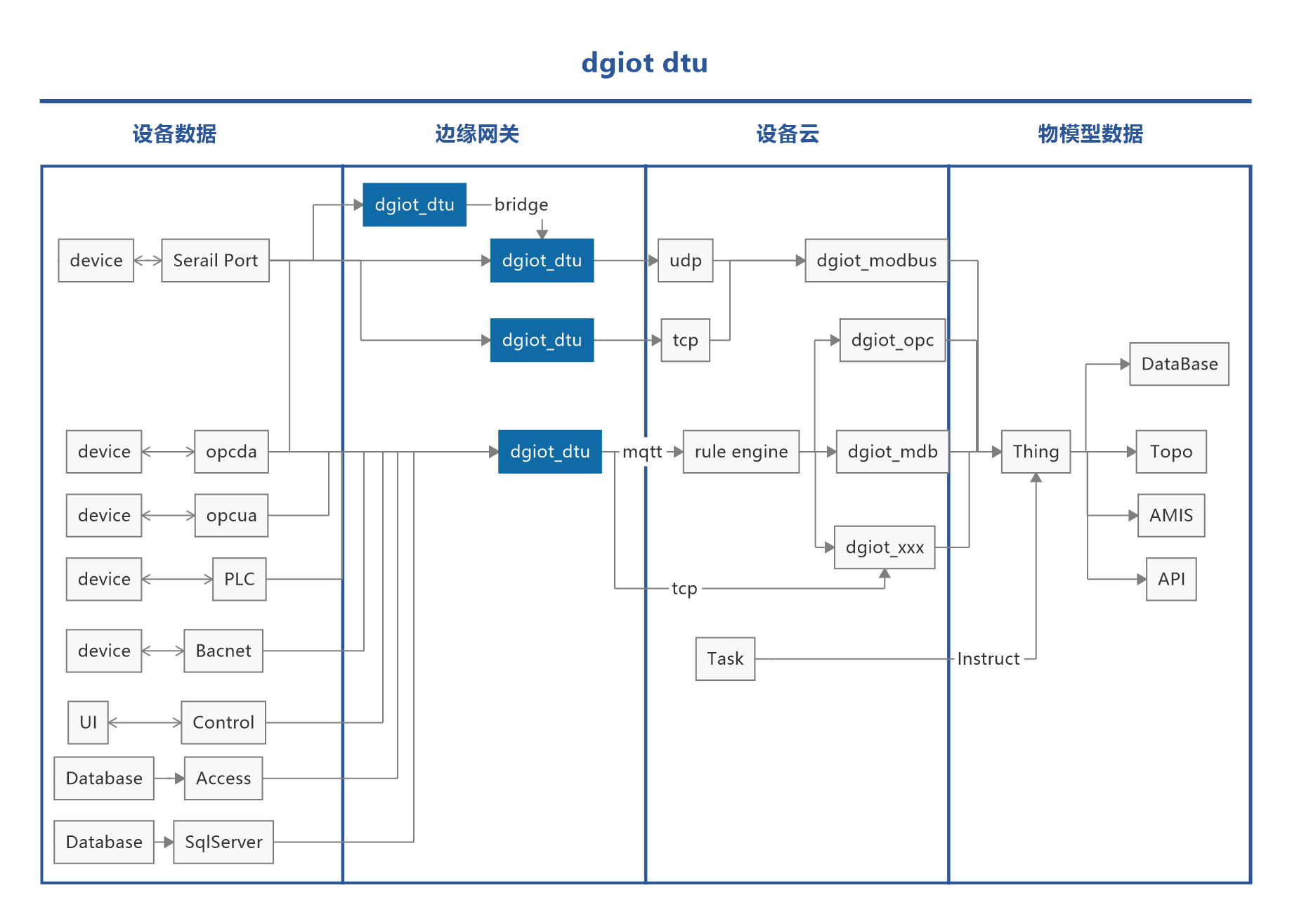

Interactive process

Interface preview

Operating environment

dgiot_dtu depends on .net4.5 operating environment, Need to install .net4.5 in the environment of window7 and below

Compiler Environment

dgiot_dtu compile and debug with vc2019

test environment

OPC simulation test

• opcserver

• opcclient

Serial port simulation test

• Virtual Meter
• Virtual modbus

Bacnet simulation test

PLC simulation test

Control simulation test

Access mock test

SqlSever simulation test

mqtt bridge test

tcp bridge test

udp bridge test
