[SiPixel Payload Inspector] Quality Maps Improved

[mmusich]

PR description:

The main goal of this PR is to improve the graphical appearance of plots produced with the pixel payload inspector, specifically for the SiPixelQuality flavour.
In doing so the class Phase1PixelROCMaps had to be changed in order to:

• print the name of the tag and IOVs in the plot header (commit 69821a2);
• support the case of diffing two payloads (commits 56dba64 and 85c9df3);

All classes depending on that had to be modified accordingly (done in commits 2bb3909, ef689cd, 6e9c712)
I profit of this PR to do some additional clean-up:

• update the scram architecture in all the test scripts (commit ea3a58c )
• mark all the methods implemented in the Phase1PixelROCMaps header as inlined (see PR [RFC] Test clang-tidy --checks misc-definitions-in-headers #33366) (commit f52b394)
• fix a mistake in one of the comments (commit b5ddb04 )

PR validation:

Unit tests of the package run successfully.
In addition run the following script:

#!/bin/sh

W_DIR=$(pwd)
mkdir -p $W_DIR/myplots

getPayloadData.py --plugin pluginSiPixelQuality_PayloadInspector --plot plot_SiPixelFullQualityMap --tag SiPixelQuality_phase1_2018_permanentlyBad --time_type Lumi --iovs '{"start_iov": "1", "end_iov": "1
"}' --db Prod --test ;
mv *.png $W_DIR/myplots/SiPixelQuality_phase1_2018_permanentlyBad.png

getPayloadData.py --plugin pluginSiPixelQuality_PayloadInspector --plot plot_SiPixelFullQualityMap --tag SiPixelQuality_phase1_2021_v2 --time_type Lumi --iovs '{"start_iov": "1", "end_iov": "1"}' --db Pro
d --test ;
mv *.png $W_DIR/myplots/SiPixelQuality_phase1_2021_v2.png

getPayloadData.py --plugin pluginSiPixelQuality_PayloadInspector --plot plot_SiPixelFullQualityMapCompareTwoTags --tag SiPixelQuality_phase1_2021_v2 --tagtwo SiPixelQuality_phase1_2018_permanentlyBad --ti
me_type Run --iovs '{"start_iov": "1", "end_iov": "1"}' --iovstwo '{"start_iov": "1", "end_iov": "1"}' --db Prod --test ;
mv *.png $W_DIR/myplots/SiPixelQuality_diff.png

getPayloadData.py --plugin pluginSiPixelQuality_PayloadInspector --plot plot_SiPixelBPixQualityMapCompareTwoTags --tag SiPixelQuality_phase1_2021_v2 --tagtwo SiPixelQuality_phase1_2018_permanentlyBad --ti
me_type Run --iovs '{"start_iov": "1", "end_iov": "1"}' --iovstwo '{"start_iov": "1", "end_iov": "1"}' --db Prod --test ;
mv *.png $W_DIR/myplots/SiPixelQuality_BPIX_diff.png

getPayloadData.py --plugin pluginSiPixelQuality_PayloadInspector --plot plot_SiPixelFPixQualityMapCompareTwoTags --tag SiPixelQuality_phase1_2021_v2 --tagtwo SiPixelQuality_phase1_2018_permanentlyBad --ti
me_type Run --iovs '{"start_iov": "1", "end_iov": "1"}' --iovstwo '{"start_iov": "1", "end_iov": "1"}' --db Prod --test ;
mv *.png $W_DIR/myplots/SiPixelQuality_FPIX_diff.png

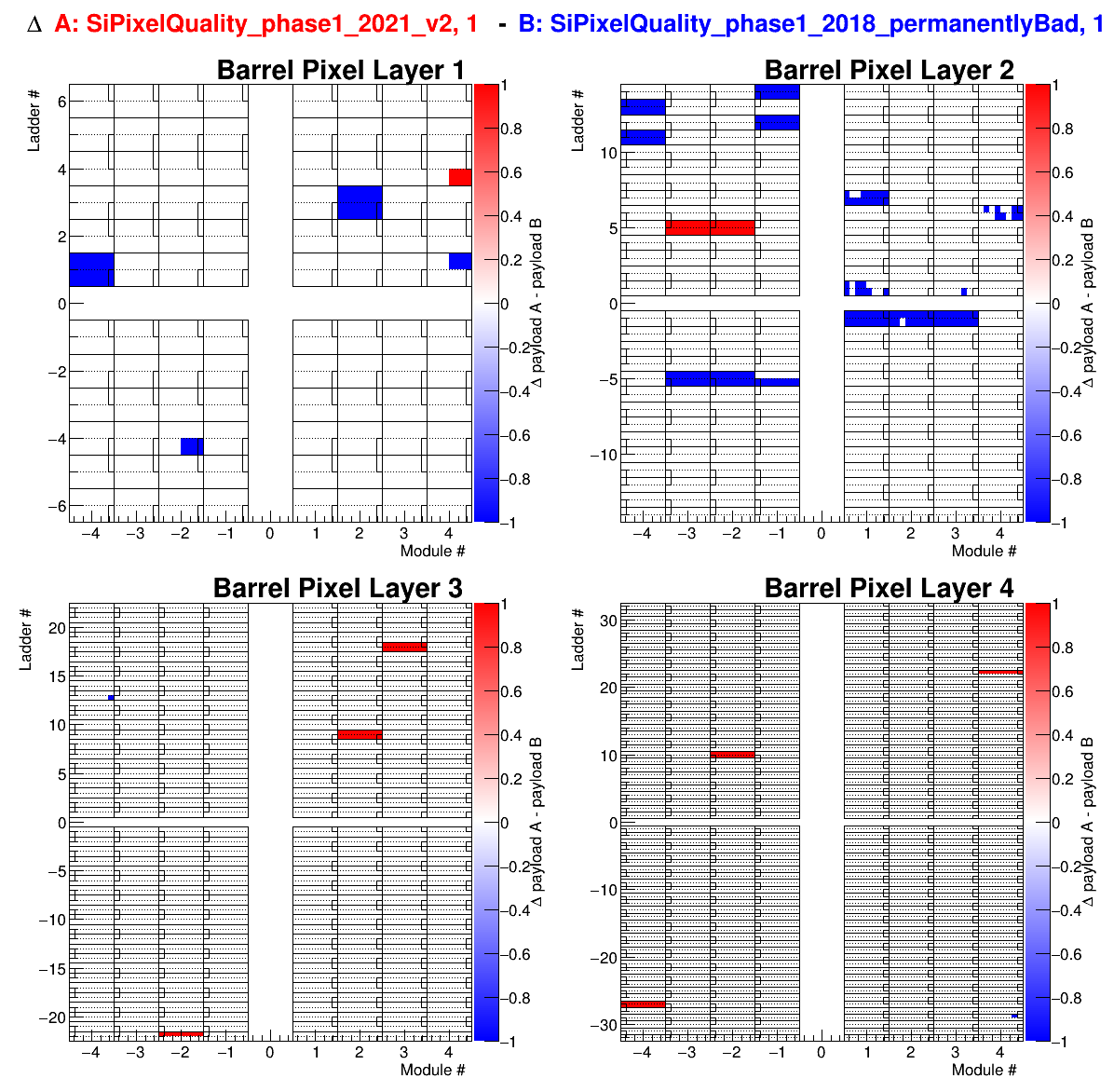

and obtained the following plots.

I post one specific example here:

if this PR is a backport please specify the original PR and why you need to backport that PR:

Not a backport, no backport is needed.

CC: @tvami @tsusa
