Add full t8010 support

[Cryptiiiic]

Tested by many people and works on all a10(so 7 and 7 plus, etc)(t8010).

[ghost]

Hi @Cryptiiiic, how did you check the upload of unsigned images?

[Cryptiiiic]

@kellermanrivero I had full control in irecovery. I set my nonce. (device is on 13.0).

[krisanovdev]

@Cryptiiiic I still can't send custom ibss via -f flag (iPhone 7).

[ghost]

Me too, I tried upload both signed and unsigned iBSS / iBEC without success.

[Cryptiiiic]

@kellermanrivero @Mrkris99 @kellermanrivero need to decrypt with img4 left decrypted, extract the raw from the decrypted, do the patches, change the info for the bootloader specific tag and output the im4p. Sign the im4p using an shsh blob. Tihmstar was talking about this on twitter.

[krisanovdev]

Why do i need to sign it? I mean if we in pwned dfu Mode then no shsh blobs should be required? Can you give us some details??

[Halo-Michael]

Also works for me(iPhone7).

[krisanovdev]

@Nalo-Michael

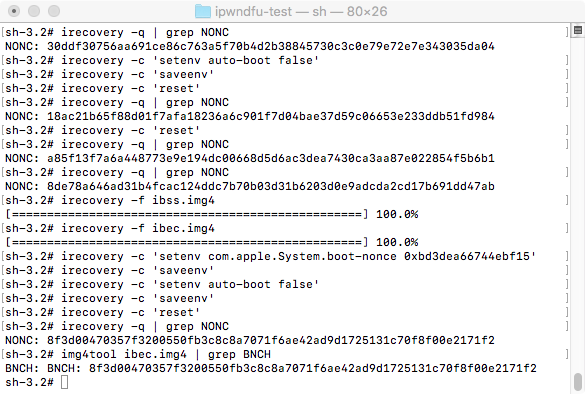

How did you realize what boot-nonce should you pass in sentenv to got NONC equals 8f3d00......?

[krisanovdev]

Also when I send custom ramdisk (3.4 GB, with irecovery -f) it stucks on 15%.

[513697696]

也适用于我（iPhone7）。


Can you give me a detailed tutorial? It's too difficult for a novice.

[krisanovdev]

Works for me.

[cakarlen]

@Mrkris99 What steps did you follow?

[sitay1]

@Mrkris99 can you provide more details?

[krisanovdev]

@cakarlen @sitay1 I've just fakesigned ibss bootloader from iOS firmware (like #3 (comment))
and verified that it was consumed by securerom correctly.

[krisanovdev]

@Cryptiiiic Looks like there is an issue with writing to bootrom memory. I've tried next script:
`
BOOTSTRAP_TASK_LR = 0x1800a9f68 # address in stack where the code should return to, after calling getDFUImage
DFU_BOOL = 0x180088AC0 # dfu_done (see handle_interface_request)
DFU_NOTIFY = 0x10000AEE8 # event_signal (see handle_interface_request)
DFU_STATE = 0x180088AF0 # dfu_event (see handle_interface_request)
TRAMPOLINE = 0x1800AC000 # see L_boot_trampoline_dst --> last const after main or the value returned by platform_get_boot_trampoline()

device.write_memory(TRAMPOLINE, checkm8.asm_arm64_branch(TRAMPOLINE, TRAMPOLINE + 0x400))
device.write_memory(TRAMPOLINE + 0x400, open('bin/t8010_shellcode_arm64.bin').read())
device.write_memory_ptr(BOOTSTRAP_TASK_LR, NAND_BOOT_JUMP)
device.write_memory(DFU_BOOL, '\x01')
device.execute(0, DFU_NOTIFY, DFU_STATE)
print 'Booted.'
`
And there is fail on device.write_memory(TRAMPOLINE, checkm8.asm_arm64_branch(TRAMPOLINE, TRAMPOLINE + 0x400))

[Cryptiiiic]

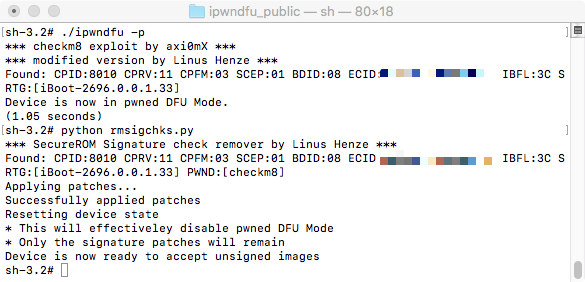

./ipwndfu -p
python rmsigchks.py
irecovery -f RANDOMFILE_TO_RESET_TRANSFER
irecovery -f iBSS.patched.img4
wait 5ish seconds
irecovery -f iBEC.patched.img4
irecovery -c "go"
wait 5ish seconds
profit
@Mrkris99 should work fine, for that type of bootrom thing, you will need offsets and sizes only obtainable by dynamic analysis. Most likely need a debug cable.

[sitay1]

on what device / ios version did you run that?

…

On Mon, Dec 2, 2019 at 8:25 PM Liam(Cryptic) ***@***.***> wrote: ./ipwndfu -p python rmsigchks.py irecovery -f RANDOMFILE_TO_RESET_TRANSFER irecovery -f iBSS.patched.img4 wait 5ish seconds irecovery -f iBEC.patched.img4 irecovery -c "go" wait 5ish seconds profit @Mrkris99 <https://github.com/MrKris99> should work fine — You are receiving this because you were mentioned. Reply to this email directly, view it on GitHub <#3?email_source=notifications&email_token=AACBABAGUQ2PRCTETBAUZCLQWVHIXA5CNFSM4I556BE2YY3PNVWWK3TUL52HS4DFVREXG43VMVBW63LNMVXHJKTDN5WW2ZLOORPWSZGOEFUNROI#issuecomment-560519353>, or unsubscribe <https://github.com/notifications/unsubscribe-auth/AACBABD7KCSYRILJO2ZBSOLQWVHIXANCNFSM4I556BEQ> .

-- *Thanks,* *Itay Levin*

[Cryptiiiic]

@sitay1 t8010 iPhone9,1 (7) 13.0 using 13.0 bootloaders(iBSS, iBEC)

[sitay1]

Thanks, i will try as well.

…

On Wed, Dec 4, 2019 at 8:58 PM Liam(Cryptic) ***@***.***> wrote: @sitay1 <https://github.com/sitay1> iPhone9,1 (7) 13.0 using 13.0 bootloaders(iBSS, iBEC) — You are receiving this because you were mentioned. Reply to this email directly, view it on GitHub <#3?email_source=notifications&email_token=AACBABB2M7FOCMSXLBTPEULQW74UTA5CNFSM4I556BE2YY3PNVWWK3TUL52HS4DFVREXG43VMVBW63LNMVXHJKTDN5WW2ZLOORPWSZGOEF6DW2Y#issuecomment-561789803>, or unsubscribe <https://github.com/notifications/unsubscribe-auth/AACBABGUSF22U64YIVU7PI3QW74UTANCNFSM4I556BEQ> .

-- *Thanks,* *Itay Levin*

[pharaoh1]

./ipwndfu -p
python rmsigchks.py
irecovery -f RANDOMFILE_TO_RESET_TRANSFER
irecovery -f iBSS.patched.img4
wait 5ish seconds
irecovery -f iBEC.patched.img4
irecovery -c "go"
wait 5ish seconds
profit
@Mrkris99 should work fine, for that type of bootrom thing, you will need offsets and sizes only obtainable by dynamic analysis. Most likely need a debug cable.

Are the same steps working with Iph X???

[Cryptiiiic]

@pharaoh1 stop

[frankl1m]

Exploit for t8011 is a full headache, 1 lucky attempt of 30 :( work too bad on pad7,4

[Sawen1981]

Does anyone know where I can find documentation on patching DeviceTree?
