RocketGov Hackathon 2022 WINNERS - Recognize

Get to know people.
If you would to get to know us, shoot us a message on rocket.chat!

Team Legends of the Puyenbroeck

• Florian Van Damme
• Demian Dekoninck
• Kilian Lievens

Links

• Landing page: https://recognize-landing.vercel.app
• Demo Itsme® page: https://recognize-landing.vercel.app/itsme/index.html
• Demo Europe Commission LiveChat: https://recognize-landing.vercel.app/europe-contact-page/index.html
• Deliverables: https://eventornado.com/submission/digital-passport

Table of Contents

• Documentation
• Installation instructions
• Identity Provider instructions
  • Setting up itsme®
  • Setting up Pexip
  • Adding metadata
  • Integrating your own identity provider

Documentation

Public sector service providers, like governments, are limited in their digital communication options to external individuals. This limitation stems from a lack of necessary trust between both parties. If these service providers would like to leverage the full power of their digital tools, they need to have a robust identification system in place.

Recognize is a rocket.chat native application that aims to provide this necessary trust. We do so by integrating the mélange of different European solutions in one simple slash command. After installation, service providers can easily start an identification flow giving non-identified users a set of different identification methods, adjusted to their local administration. A service provider from Belgium can activate the itsme® integration, other countries can activate an integration native to their administration.

For the tough cases we also provide a fallback solution using private and secure video communication powered by Pexip. All integrations offered by Recognize are customizable and extensible.

Using Recognize, service providers can leverage their pre-existing partnerships and digital infrastructure resulting in a higher return on the initial investment and accelerating the speed of implementation.

Recognize is an open source project, which is free to install but has ambitions for a premium priced plan offering a fixed cost per unique identification per year.

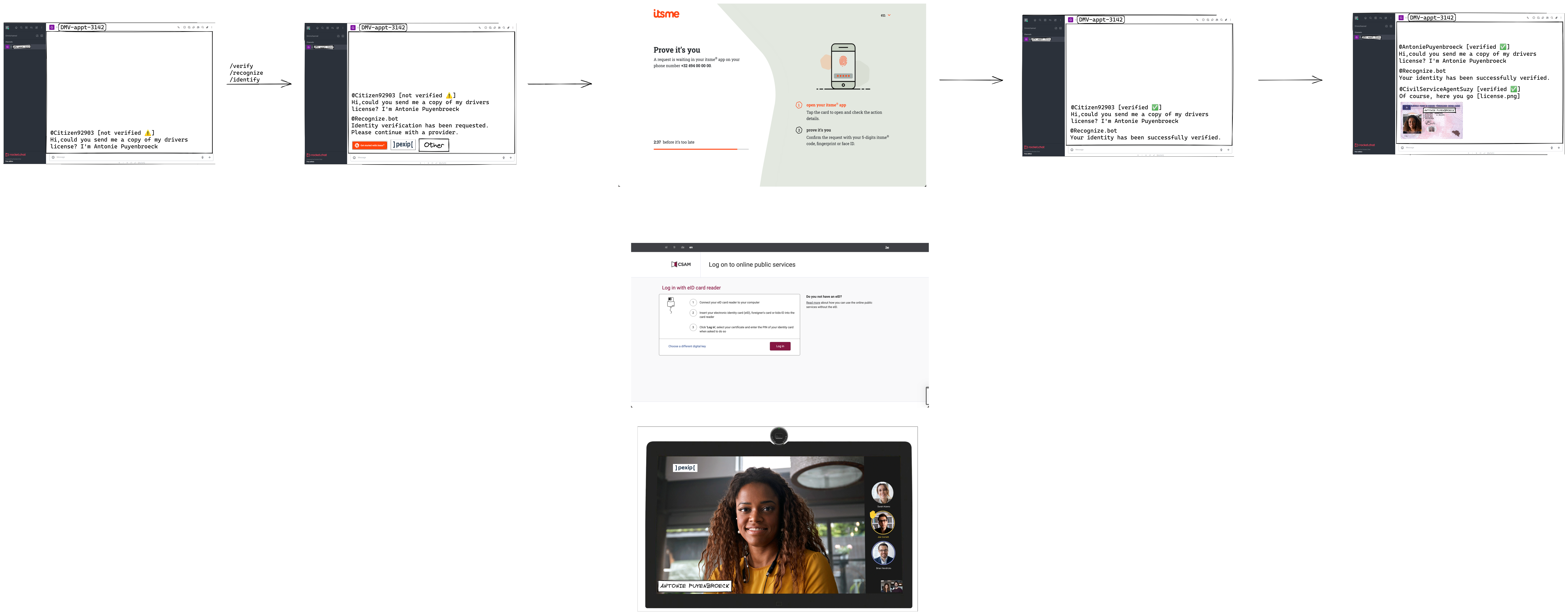

Below, you can find an example flow of a Recognize powered rocket.chat exchange between a citizen and service provider:

Installation instructions

Rocket.Chat instance

1. Download Rocket Chat

2. To deploy our Rocket.Chat App, you should enable the development mode:

   • Navigate to Admin
   • Open the General Settings
   • Enable development mode

Setup the project

Clone this repository, and copy the .rcappsconfig.example to .rcappsconfig. Fill in the userId and token that you can generate from your account detail page.

npm install
npm run rc-apps deploy

Add custom CSS and JS

Because we are not able to style buttons using UIKit, or to add a custom verification badge next to a username, we decided to provide custom CSS and JS.

1. Add custom CSS

   • Navigate to Admin
   • Open the Layout Settings
   • Edit the custom CSS to contain the CSS provided here

2. Add custom JS

   • Navigate to Admin
   • Open the Layout Settings
   • Edit the custom Script for Llogged In Users to contain the JS provided here

Identity Provider instructions

Setting up itsme®

Navigate to apps -> Recognize -> settings in your rocket.chat instance. The first step is to enable the itsme® integration, this is done by selecting it from the dropdown in the Enabled identification services.

After the itsme® integration is enabled, please provide the application with your client id and secret pair, along with the base URL of your itsme® instance.

See below screenshot for an example integration.

Setting up Pexip

Navigate to apps -> Recognize -> settings in your rocket.chat instance. The first step is to enable the Pexip integration, this is done by selecting it from the dropdown in the Enabled identification services.

After the Pexip integration is enabled, please provide the application with your username and password, along with the base URL of your Pexip management node. Ensure that your management node is exposed to the public internet and has username / password authentication enabled. In addition, your instance needs to have a policy server that supports ad-hoc VMR creation. For additional information, please check the official Pexip documentation on how to do so.

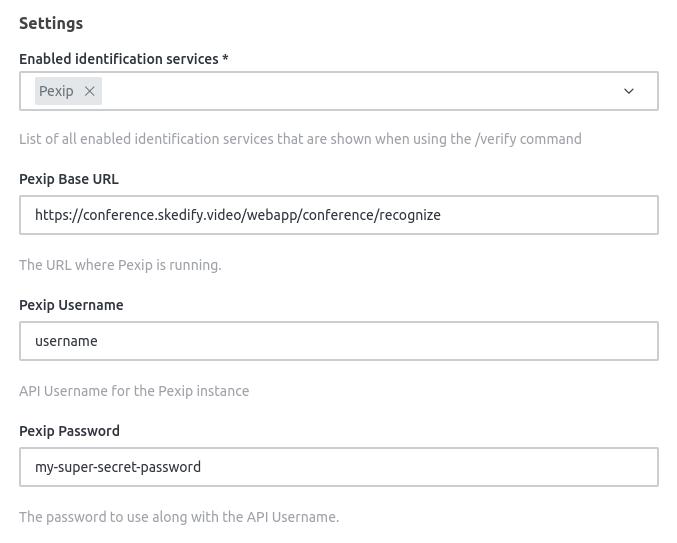

See below screenshot for an example integration.

Adding metadata

Recognize allows identity providers to enrich callbacks done to the Recognize rocket.chat with additional metadata about the user. meta is an optional any type field stored on a verified-user. This data can be read by rocket.chat and other applications and used however they see fit. To allow maximum flexibility, this field can contain any data, so the integrator is responsible for parsing and validating this data.

The (optional) meta is passed in the verify-user POST body. There's no validation and no restrictions on this field. An example could be:

curl --location --request POST 'https://<RocketChatInstanceBaseURL>/api/apps/public/<RecognizeAppId>/verify-user' \
--header 'Content-Type: application/json' \
--data-raw '{
    "firstName": "Antonie",
    "lastName": "Puyenbroeck",
    "meta": "My Metadata"
}'

Note that the meta is a string here, but it could easily be number or any object. Feel free to get creative!

Integrating your own identity provider

Before starting on integrating a new identity provider, it is important to understand how Recognize sends and receives requests to and from said identity providers.

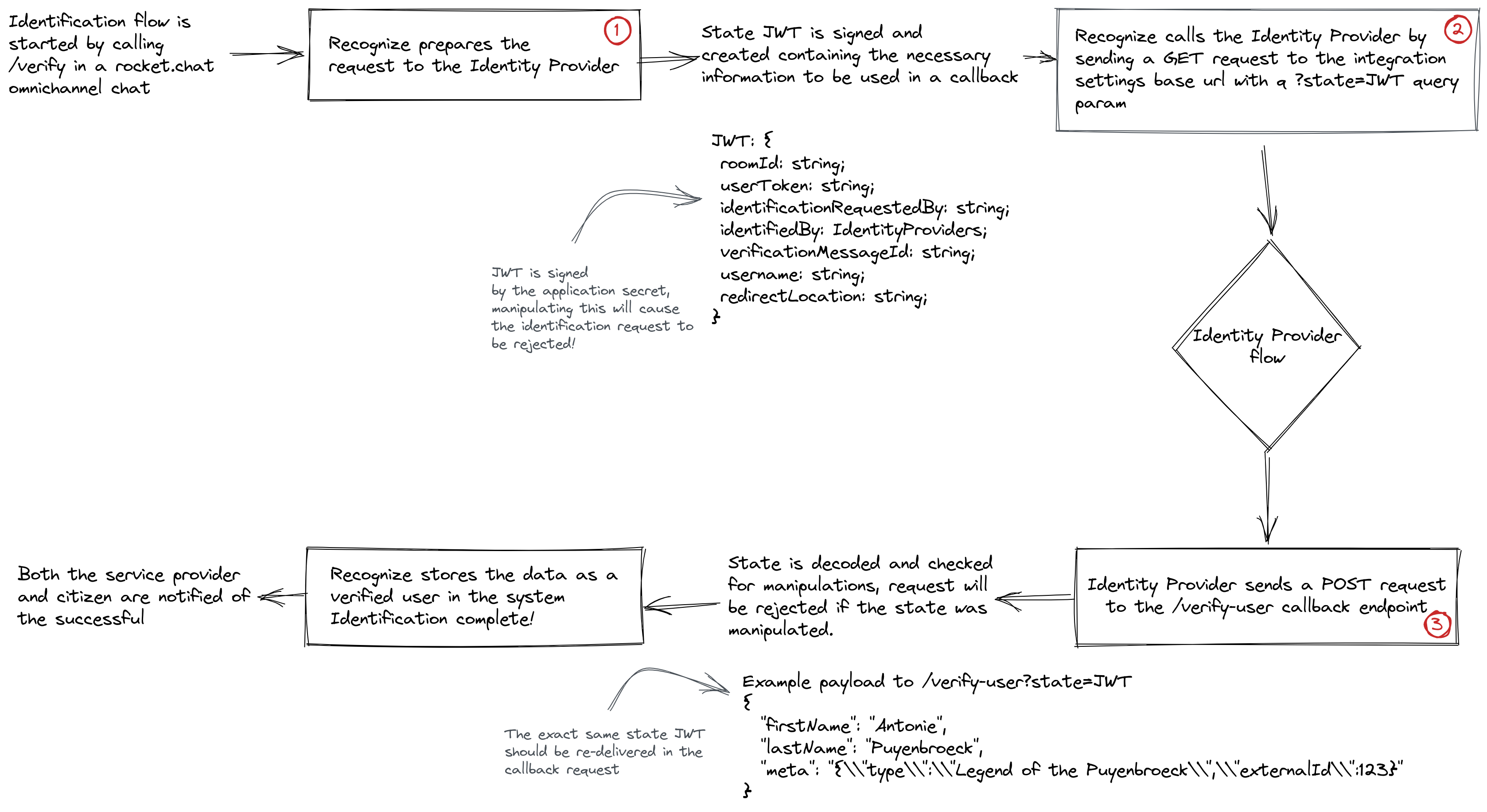

The following flow chart gives a base overview on how the Recognize internals work:

1. Recognize prepares the request to the Identity Provider, this is done by creating a state JWT, containing all information required by Recognize to ensure:

   • The request is not tampered with, if the state is manipulated the request is rejected
   • Linking the Identity Provider callback to the correct user

2. After activating your integration, and providing Recognize with the necessary information (url, any applicable secrets or ids, ...). Recognize will send a GET request to the Identity Provider endpoint, an example request will look something like this.

   curl --location --request GET 'https://<IdentityProviderBaseURL>?state=eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJyb29tSWQiOiI1QkRGeHJYTnZkVFJUc1NlaiIsInVzZXJUb2tlbiI6ImI4YzQxMDZlNjIxZTRlOTM3NzRjMTUzNGZlNmEzOGJkNTcwNTY1NGYwM2M0Nzg0NjgyMTNmZDJiNGZkYzA0MjEiLCJpZGVudGlmaWNhdGlvblJlcXVlc3RlZEJ5IjoiS01oM25pdnc0UHRDeHVZWFQiLCJ2ZXJpZmljYXRpb25NZXNzYWdlSWQiOiJ3S3g1QXlXZnB3TmtYaXgzOCIsInVzZXJuYW1lIjoiZ3Vlc3QtMTgiLCJpZGVudGlmaWVkQnkiOiJJVFNNRSIsInJlZGlyZWN0TG9jYXRpb24iOiJodHRwczovL3JlY29nbml6ZS1sYW5kaW5nLnZlcmNlbC5hcHAvaXRzbWUvaW5kZXguaHRtbCIsImlhdCI6MTY2ODM0NjIxNH0.6OYDbuuUookrp_MGkun7KIKAEg_aQFu7ee221IX3owI&name=Antonie%20Puyenbroeck' \
   --header 'X-Client-ID: ip-client-id' \
   --header 'X-Client-Secret: ip-client-secret'

   After this request, the user should enter the verification flow of the Identity Provider.

3. Upon successful identification of the user, the Identity Provider MUST respond with a POST to the /verify-user endpoint. This request requires the Identity Provider to return the state query param untouched. In addition, through the body a firstName and lastName property MUST be provided. This request can also return any optional metadata to be store along the identified user. See adding metadata for additional specifics. An example response will look something like this:

   curl --location --request POST 'https://<RocketChatInstanceBaseURL>/api/apps/public/<RecognizeAppId>/verify-user?state=eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJyb29tSWQiOiI1QkRGeHJYTnZkVFJUc1NlaiIsInVzZXJUb2tlbiI6ImI4YzQxMDZlNjIxZTRlOTM3NzRjMTUzNGZlNmEzOGJkNTcwNTY1NGYwM2M0Nzg0NjgyMTNmZDJiNGZkYzA0MjEiLCJpZGVudGlmaWNhdGlvblJlcXVlc3RlZEJ5IjoiS01oM25pdnc0UHRDeHVZWFQiLCJ2ZXJpZmljYXRpb25NZXNzYWdlSWQiOiJ3S3g1QXlXZnB3TmtYaXgzOCIsInVzZXJuYW1lIjoiZ3Vlc3QtMTgiLCJpZGVudGlmaWVkQnkiOiJJVFNNRSIsInJlZGlyZWN0TG9jYXRpb24iOiJodHRwczovL3JlY29nbml6ZS1sYW5kaW5nLnZlcmNlbC5hcHAvaXRzbWUvaW5kZXguaHRtbCIsImlhdCI6MTY2ODM0NjIxNH0.6OYDbuuUookrp_MGkun7KIKAEg_aQFu7ee221IX3owI' \
   --header 'Content-Type: application/json' \
   --data-raw '{
   "firstName": "Antonie",
   "lastName": "Puyenbroeck",
   "meta": "{\\"type\\":\\"Legend of the Puyenbroeck\\",\\"externalId\\":123}"
   }'

By adhering to this specification, any Identity Provider can be registered in Recognize. If you like professional support or a custom integration, please feel free to message us on rocket.chat.
