- react : 18.2.0
- typescript : 4.8.4
- chakra-ui : 2.3.6
- redux-toolkit : 8.0.4
- Ubuntu 20.04
- Maven 3.8.6
- Tomcat 9.0.54
- openjdk 11.0.16
- mariaDB 10.6
- express : 4.8.2
- socket.io : 4.5.3
-
nginx 설치
sudo apt-get update #운영체제에서 사용 가능한 패키지들과 그 버전에 대한 정보(리스트) 업데이트 sudo apt install nginx -y #nginx 설치하기 nginx -v #설치한 nginx 버전 확인 sudo service nginx status #nginx running 상태 확인 sudo service nginx start
-
certbot 설치
add-apt-repository ppa:certbot/certbot apt-get update apt-get install python3-certbot-nginx certbot certonly --nginx -d example.com #설치된 certbot을 이용하여 도메인(ex. example.com) 에 대한 SSL 인증서만 발급받는다. #optional 인증서 자동갱신(90일) sudo certbot renew --dry-run
-
nginx 설정(최상단 설정)
nano /etc/nginx/sites-available/co-nnection.conf 수정은 깃랩 파일 참고 #파일 문제없는지 확인 sudo nginx -t #심볼릭링크 생성 sudo ln -s /etc/nginx/sites-available/co-nnection.conf /etc/nginx/sites-enabled sudo service nginx restart
-
/etc/nginx/sites-available/co-nnection.conf
server { listen 80; server_name k7c202.p.ssafy.io; return 301 https://k7c202.p.ssafy.io$request_uri; } server { listen 443; server_name k7c202.p.ssafy.io; ssl on; # ssl 인증서 적용하기 ssl_certificate /etc/letsencrypt/live/k7c202.p.ssafy.io/fullchain.pem; ssl_certificate_key /etc/letsencrypt/live/k7c202.p.ssafy.io/privkey.pem; location / { proxy_pass http://k7c202.p.ssafy.io:3000/; proxy_set_header Host $http_host; proxy_set_header X-Real-IP $remote_addr; proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for; proxy_set_header X-Forwarded-Proto $scheme; } #BE API location /api/ { proxy_pass http://k7c202.p.ssafy.io:8080/; } #Socket location /node { rewrite ^/node(.*)$ $1 break; proxy_pass http://localhost:8000; #Socket.IO proxy_http_version 1.1; proxy_set_header Upgrade $http_upgrade; proxy_set_header Connection "upgrade"; proxy_set_header Host $http_host; } } server { if ($host = k7c202.p.ssafy.io) { return 301 https://$host$request_uri; } listen 80; server_name k7c202.p.ssafy.io; return 404; # managed by Certbot }
-
-
Jenkins 설정
docker run -itd --name jenkins -p 9090:8080 jenkins/jenkins:lts #초기패스워드 입력 docker exec jenkins cat /var/jenkins_home/secrets/initialAdminPassword
-

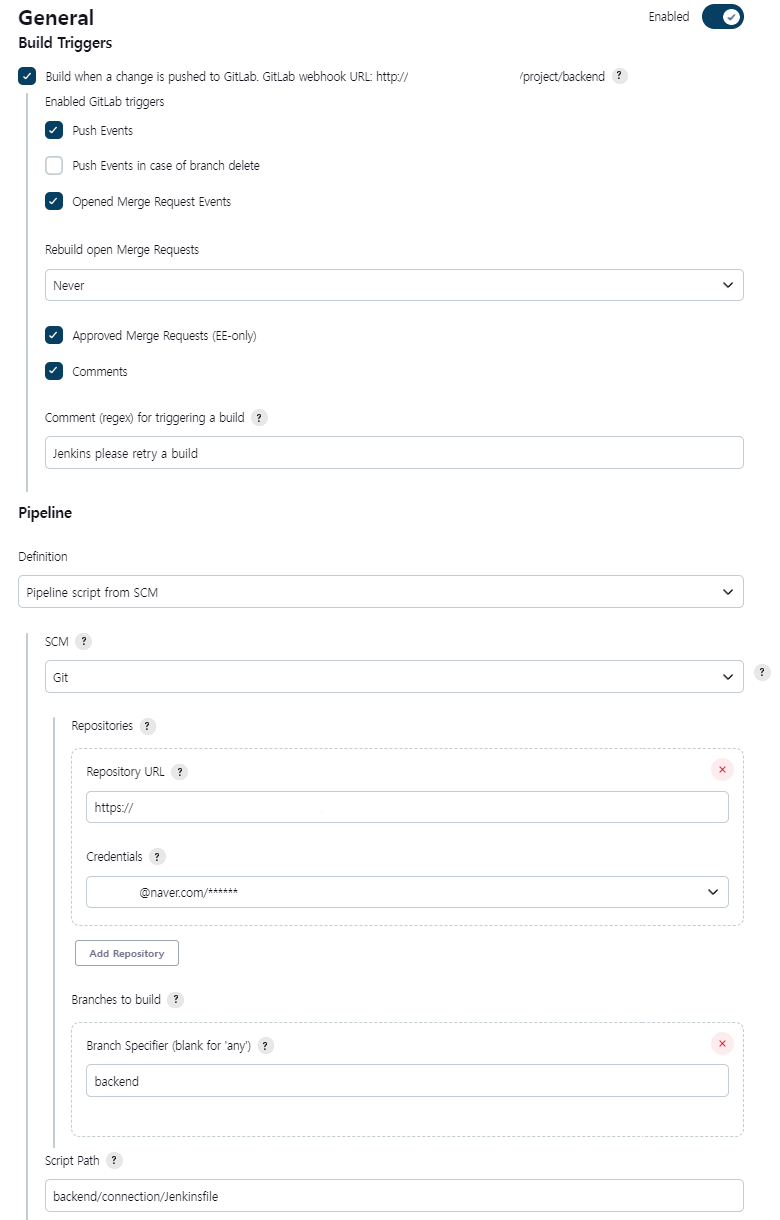

젠킨스 파이프라인 설정
-
젠킨스파일(backend/connection/Jenkinsfile)
pipeline { agent any tools { maven 'maven386' jdk 'java11' } stages { stage("build"){ steps { script{ try { sh 'docker stop backend' sh 'docker rm backend' sh 'docker rmi backend-image' } catch (e) { sh 'echo "fail to stop and remove container"' } } sh 'mvn clean package -f ./backend/connection/pom.xml' sh 'docker build -t backend-image ./backend/connection' echo 'Build image...' sh 'docker run -d -p 8080:8080 --restart="always" --name backend backend-image' echo 'docker run complete' } } } } -
도커파일(backend/connection/Dockerfile)
FROM maven:3.8.6-jdk-11 VOLUME /tmp ADD target/connection-0.0.1-SNAPSHOT.jar app.jar ENV TZ=Asia/Seoul EXPOSE 8080 ENTRYPOINT ["java","-Djava.security.egd=file:/dev/./urandom","-jar","/app.jar"]
-

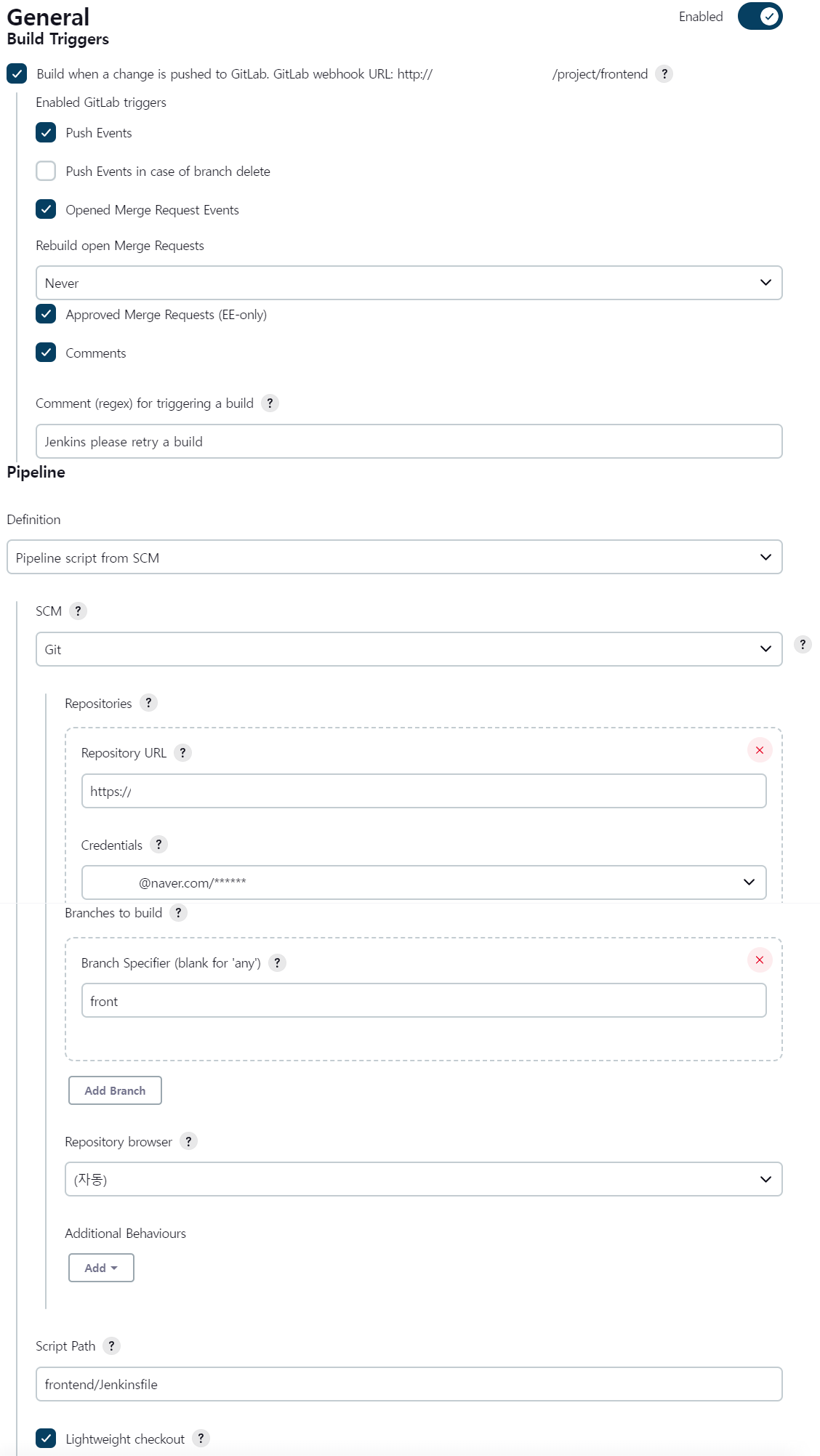

젠킨스 파이프라인 설정
-

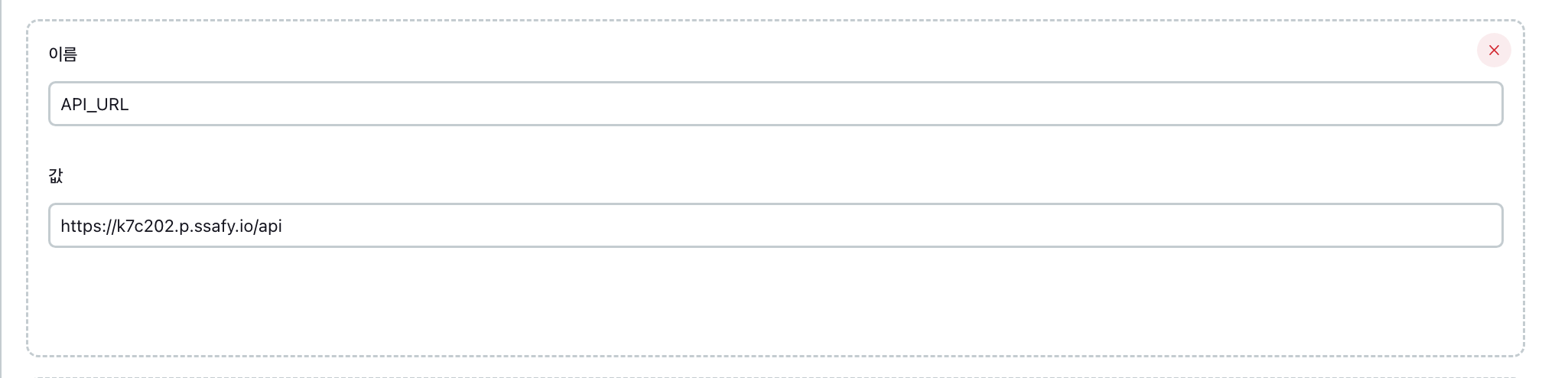

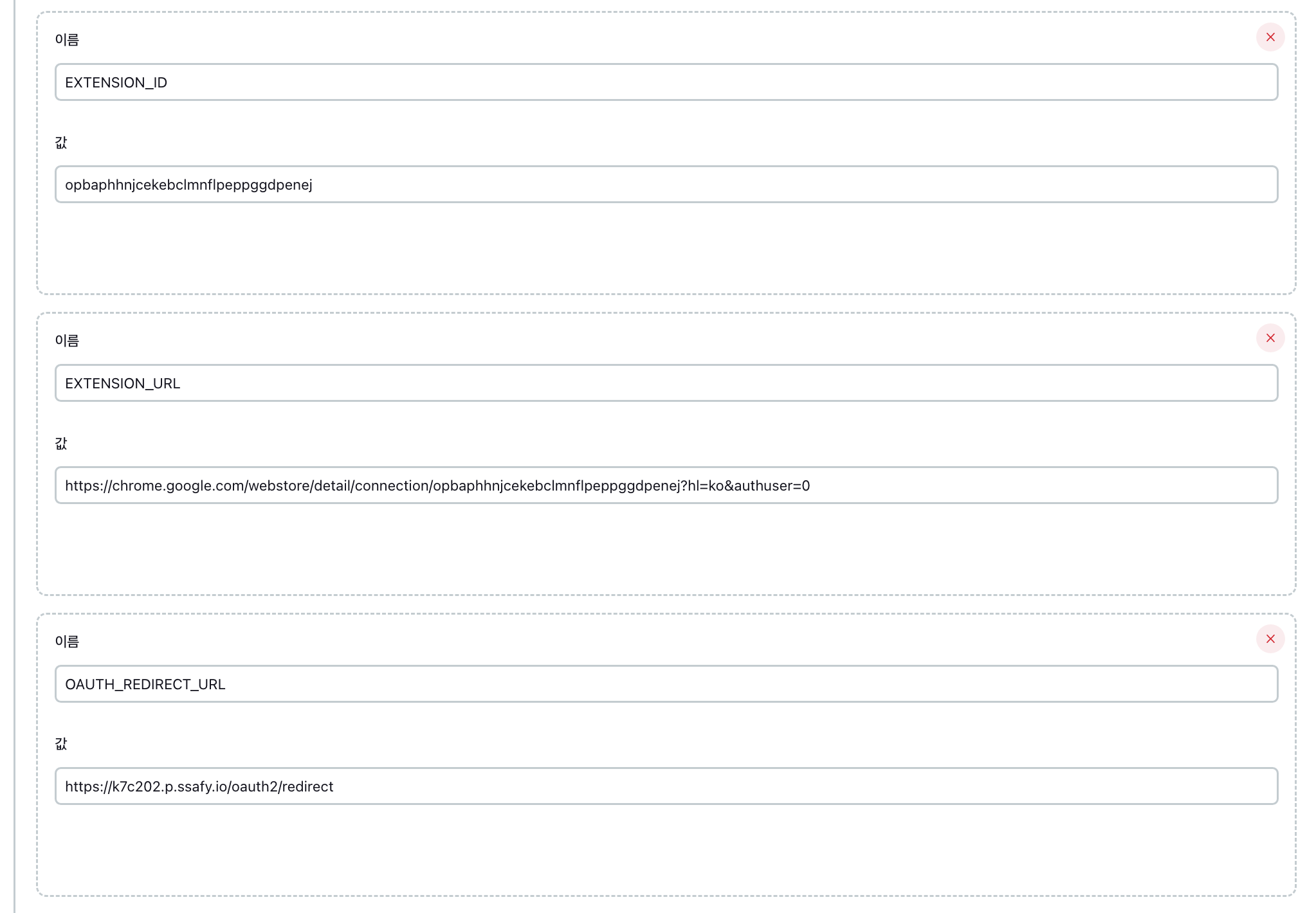

젠킨스 환경변수 셋팅
-
프론트 및 소켓서버 빌드 젠킨스파일(frontend/Jenkinsfile)
pipeline { agent any stages { stage("build"){ steps { sh 'docker image prune -a --force' sh 'docker build -t wlsgh97/coalla-node-server ./node' sh 'docker build -t wlsgh97/coalla-frontend ./frontend --build-arg EXTENSION_ID=${EXTENSION_ID} --build-arg EXTENSION_URL=${EXTENSION_URL} --build-arg OAUTH_REDIRECT_URL=${OAUTH_REDIRECT_URL} --build-arg API_URL=${API_URL}' sh 'echo "$DOCKER_HUB_PASSWORD" | docker login -u "$DOCKER_HUB_ID" --password-stdin' echo 'Build image...' sh "docker push wlsgh97/coalla-frontend" sh "docker push wlsgh97/coalla-node-server" script{ try { sh 'docker stop node-server' sh 'docker rm node-server' // sh 'docker rmi wlsgh97/coalla-node-server' } catch (e) { sh 'echo "fail to stop and remove node-server container"' } try { sh 'docker stop frontend' sh 'docker rm frontend' // sh 'docker rmi wlsgh97/coalla-frontend' } catch (e) { sh 'echo "fail to stop and remove container"' } } sh "docker run -d -p 3000:3000 --name frontend wlsgh97/coalla-frontend" sh "docker run -d -p 8000:8000 --name node-server wlsgh97/coalla-node-server" } } } }
-
프론트 도커파일(/front/Dockerfile)
FROM node:14.19.2 as builder WORKDIR /app COPY package*.json ./ RUN npm i COPY ./ ./ ARG API_URL ARG OAUTH_REDIRECT_URL ARG EXTENSION_ID ARG EXTENSION_URL RUN REACT_APP_EXTENSION_ID=${EXTENSION_ID} REACT_APP_EXTENSION_URL=${EXTENSION_URL} REACT_APP_OAUTH_REDIRECT_URL=${OAUTH_REDIRECT_URL} REACT_APP_API_URL=${API_URL} npm run build FROM nginx EXPOSE 3000 COPY ./nginx/default.conf /etc/nginx/conf.d/default.conf COPY --from=builder /app/build /usr/share/nginx/html CMD ["nginx","-g","daemon off;"]
-
프론트단 엔진엑스 설정(/frontend/nginx/default.conf)
server { listen 3000; location / { root /usr/share/nginx/html; index index.html index.htm; try_files $uri $uri/ /index.html; gzip_static always; } }
-
프론트 (노드) 도커파일(/node/Dockerfile)
FROM node:alpine WORKDIR /usr/app COPY ./package*.json ./ RUN npm i COPY ./ ./ EXPOSE 8000 USER node CMD [ "npm", "run", "start" ]
-

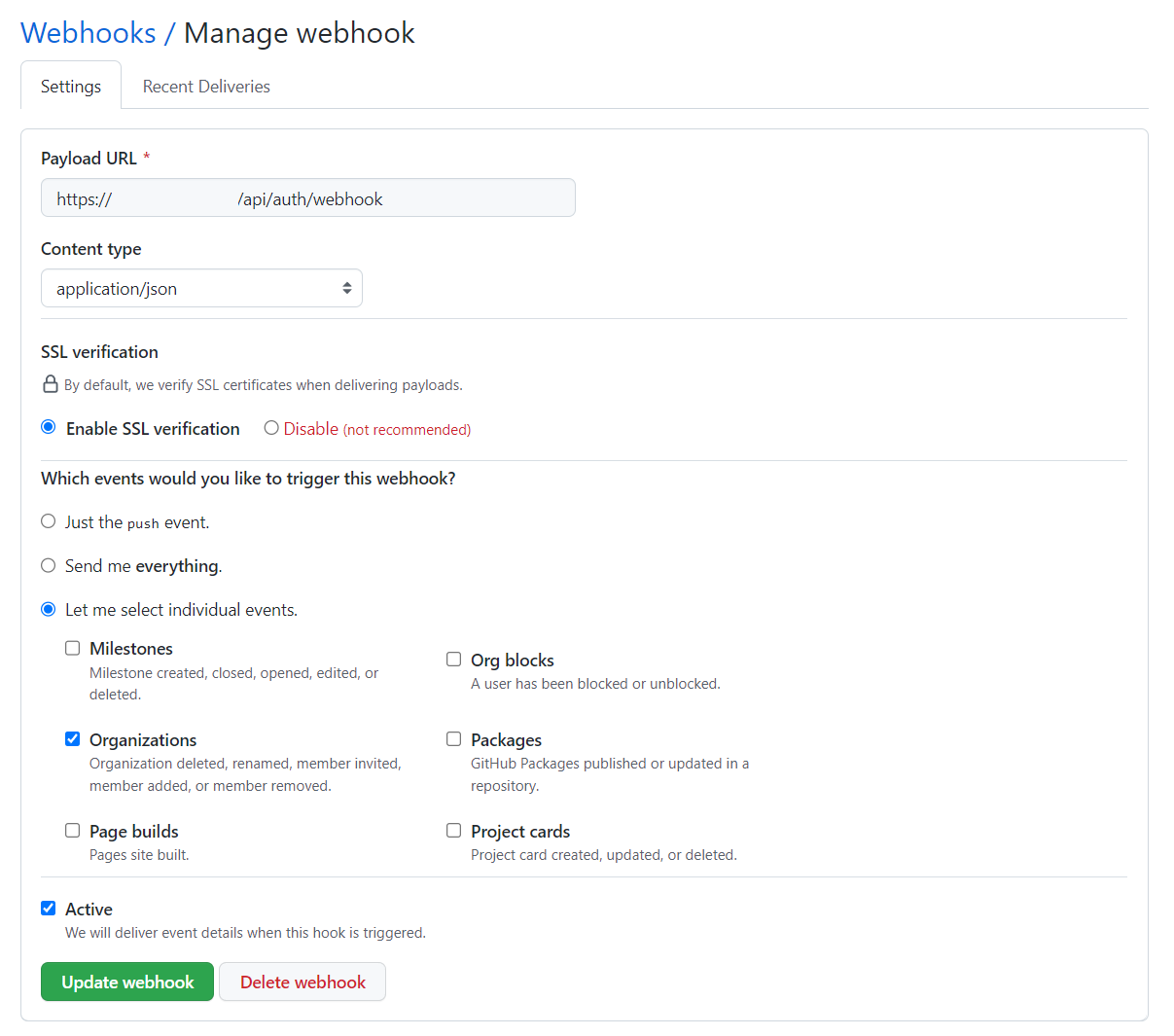

웹훅 설정
-

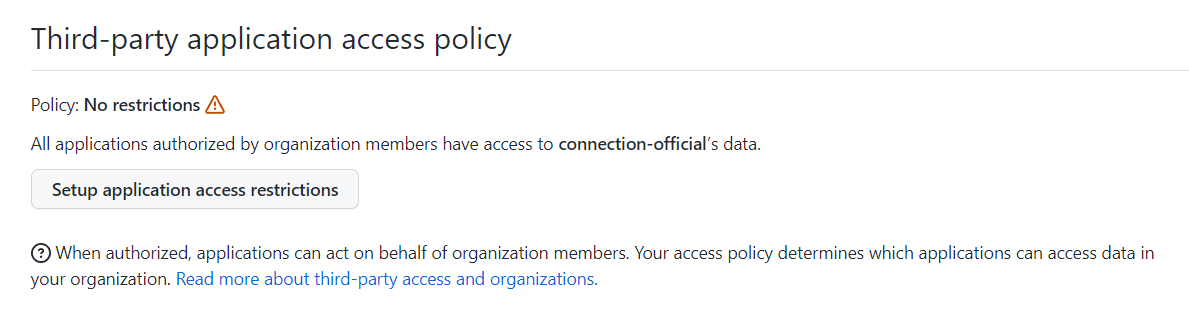

oauth앱 접근 설정
