Omaspec 0.4.2: a PlantUML and Mermaid editor for Omarchy that understands behavior

[enhapu-afk]

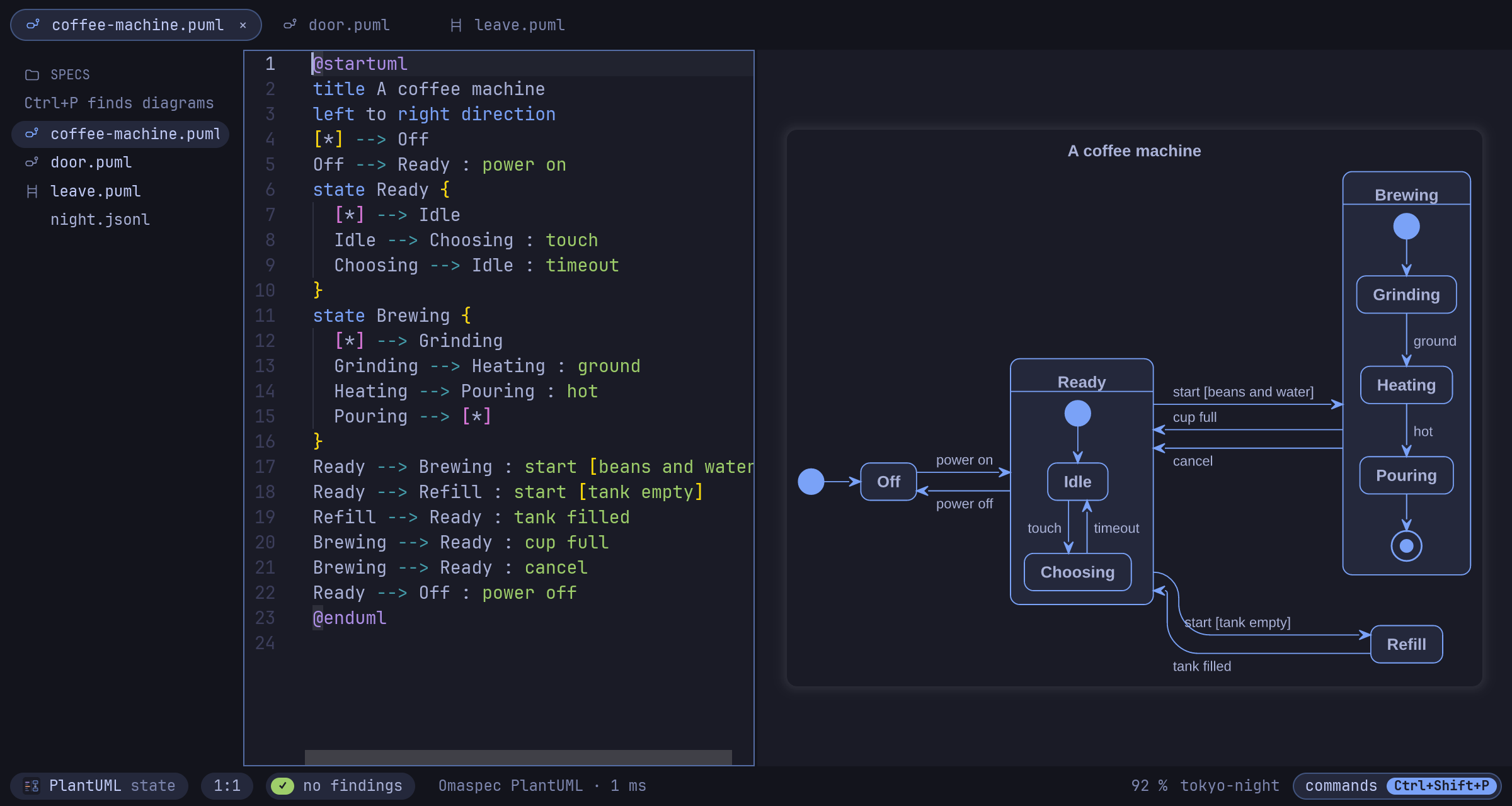

Omaspec is a native diagram editor for Omarchy: the source next to the live
diagram, in your Omarchy theme and font. It is pure Rust, one binary that draws
with its own engines: no Java, no browser, no network, and it sends nothing
anywhere.

What PlantUML and Mermaid cannot do

Omaspec reads a state diagram as the state machine it specifies, and a sequence
diagram as a scenario, in PlantUML and Mermaid alike:

• Checks while you type. A state no path reaches, a state nothing leaves, one
  event leading two ways with no guard to choose. A sequence diagram is checked
  against the state machines of its folder: every message must be an event its
  receiver can take, in the order the scenario sends them.

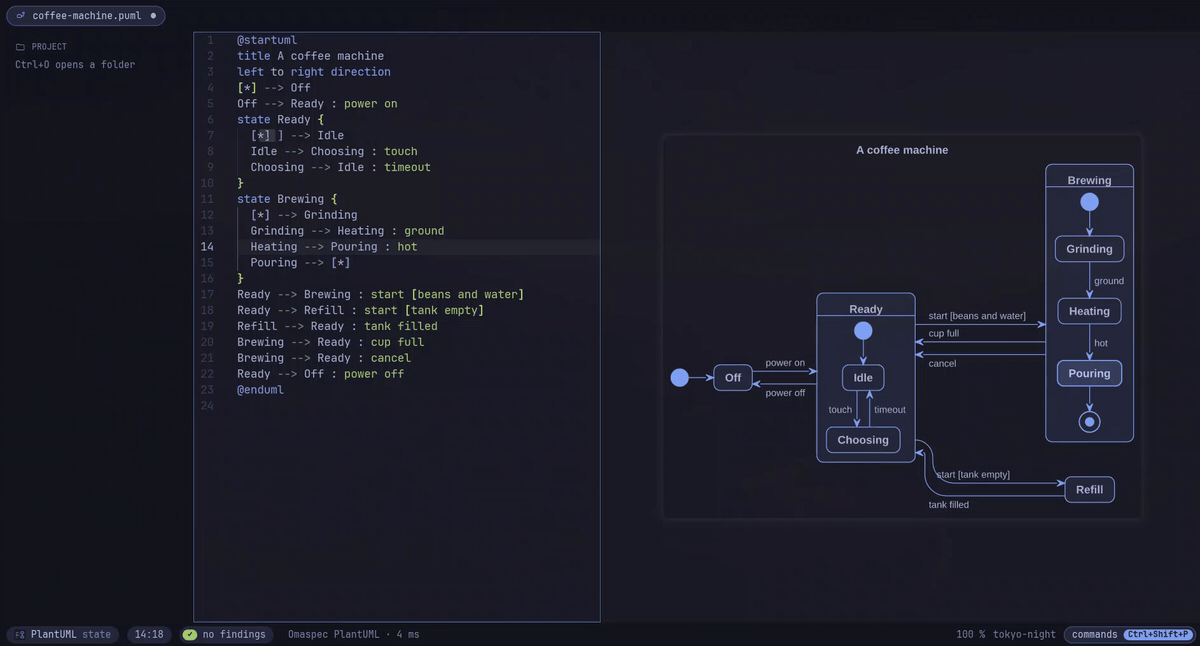

• Play it. F5 runs the diagram on screen: the states the machine is in light
  up, you pick what happens next, a light runs along each transition or
  message.
  [See it play](https://raw.githubusercontent.com/enhapu-afk/omaspec/main/docs/images/play.gif)
  .
• Hold a recorded trace against it. omaspec trace run.jsonl plays what a
  running system logged through its state machines and says where it deviated,
  with the time. The editor plays the trace in the diagram, line by line.
• What changed in the behavior. omaspec diff compares two versions, or a
  file with its last commit, by states, transitions and messages, not by lines;
  layout and colors do not count.
• Write it in the other language. omaspec convert turns a PlantUML machine
  or scenario into Mermaid and back, and only when the result means the same.
• For AI agents. omaspec mcp is an MCP server with the command line's
  tools: lint, trace, diff, convert, format, render and more.

The editor

• Lint findings while you type; outline; Ctrl+click in the diagram jumps to the
  line.
• Compare a diagram with another tab or with any git commit, as pictures or
  changed lines.
• The diagram in its own window for a second monitor; a preview window for
  Neovim users.
• Follows omarchy theme and omarchy font set live; a Hyprland binding, a
  menu entry and themed colors included.
• Exports SVG, PNG and PDF with the source inside, so an image opens as a
  diagram again.
• 24 examples to start from (Ctrl+Shift+E), and every command in a palette
  (Ctrl+Shift+P).

Drawing

Omaspec draws most diagrams with its own engines, in a few milliseconds:
PlantUML sequence, activity, state, class, component, use case, deployment,
object, timing and Gantt diagrams, mind maps, WBS, JSON and formulas, and
Mermaid flowcharts, state and sequence diagrams. The other Mermaid types are
drawn by mmdr, a Rust library, in the same process. A few PlantUML types (YAML,
Salt and more) it does not draw yet and says so; if you install the optional
plantuml package (Java), Omaspec hands just those to it, confined with
Landlock. Omaspec reads state and sequence diagrams as PlantUML 1.2026.8 does;
a test holds the two readings against each other.

Install

Omaspec is not in the AUR yet, because the AUR takes no new accounts at the
moment. Until it does, build the package from the repository:

git clone https://github.com/enhapu-afk/omaspec
cd omaspec/packaging/aur/omaspec-bin
makepkg -si

This installs the release binary with the desktop entry, the icon and the file
types, so file managers open .puml and .mmd files with Omaspec. On other
distributions, take the binary from the
release.

The
[getting started guide](https://github.com/enhapu-afk/omaspec/blob/main/docs/guide/README.md)
walks you through a state machine, a scenario and a recorded trace in ten
minutes.

What's next

• Lines by hand. Drag a line in the diagram, or a bend in it, to route it
  yourself; the diagram keeps your route.
• Diagrams that link. Click a state and the view zooms into it: inside is the
  activity diagram that says what the state does. A specification you can read
  from the whole system down to a single step.
• Even cleaner lines. Fewer crossings and detours, lines that keep clear of
  frames and labels, closer to what Graphviz draws.

Status

Omaspec is young: well tested (unit and golden tests, a comparison with the
Java PlantUML, fuzzing), but little used outside its tests so far, so you will
find rough edges. Issues, diagrams it draws wrong, and wishes are very welcome:
https://github.com/enhapu-afk/omaspec/issues
