Inheritance in Class Diagram

[nguyin]

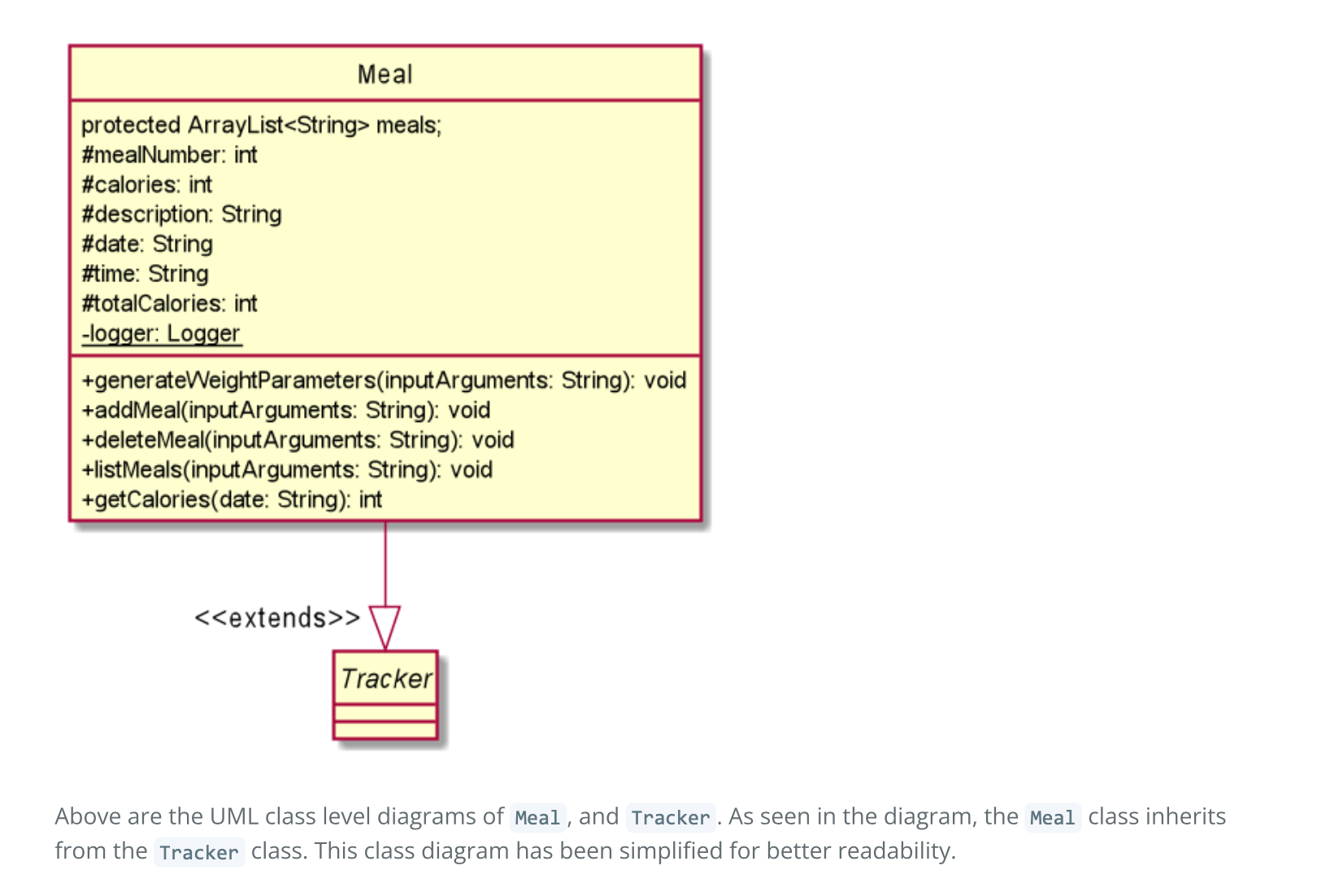

The derived class (meal) should be at the bottom instead of the top to show the inheritance better. May be a bit confusing for the readers.

[soc-se-bot]

Team's Response

Duplicate issue.

The 'Original' Bug

[The team marked this bug as a duplicate of the following bug]

Redundant description for Class Diagrams

Note from the teaching team: This bug was reported during the Part II (Evaluating Documents) stage of the PE. You may reject this bug if it is not related to the quality of documentation.

---

Description seems quite redundant as the inheritance is already shown in the diagram. The order should be flipped, with the base class on top and the derived classes at the bottom to better display this inheritance or it may be misinterpreted.

---

_{[original: nus-cs2113-AY2122S1/pe-interim#347] [original labels: severity.Low type.DocumentationBug]}

Their Response to the 'Original' Bug

[This is the team's response to the above 'original' bug]

Thanks for pointing it out! We're accepting this as "VeryLow" since this is simply a matter of "ordering" of the objects. Nevertheless, arrows are still shown for better understanding.

Items for the Tester to Verify

❓ Issue duplicate status

Team chose to mark this issue as a duplicate of another issue (as explained in the Team's response above)

• I disagree

Reason for disagreement: This bug should be on the redundancy of the description. But the team may have been mistaken because combined two in one.

---

❓ Issue severity

Team chose [severity.VeryLow]
Originally [severity.Low]

• I disagree

Reason for disagreement: The purpose of the diagram is to show the inheritance of the classes. Hence, the diagram is misleading as the orientation is wrong and can cause wrong interpretations.

---
