type slide
<style type="text/css"> .reveal p { text-align: left; padding-left: 40px; } .reveal ul { display: block; } .reveal ol { display: block; } </style>

CS4215 Project

AY2023/24 Sem 2

  • Bharath Chandra Sudheer
  • Hoang Trong Tan

Key Object: Concurrency

Concurrency Primitives:

  • goroutine, mutex, semaphore, waitgroup, channel
  • should not be naive busy-waiting

Granularity level of concurrency: interleaved execution of VM instructions

Other Objectives:

  • sequential logic: for, if, func, func literals, var, primitive types: bool, str, int and related operations and *T for any type

  • low-level memory management

    • garbage collection: cheney
    • visualisation of memory

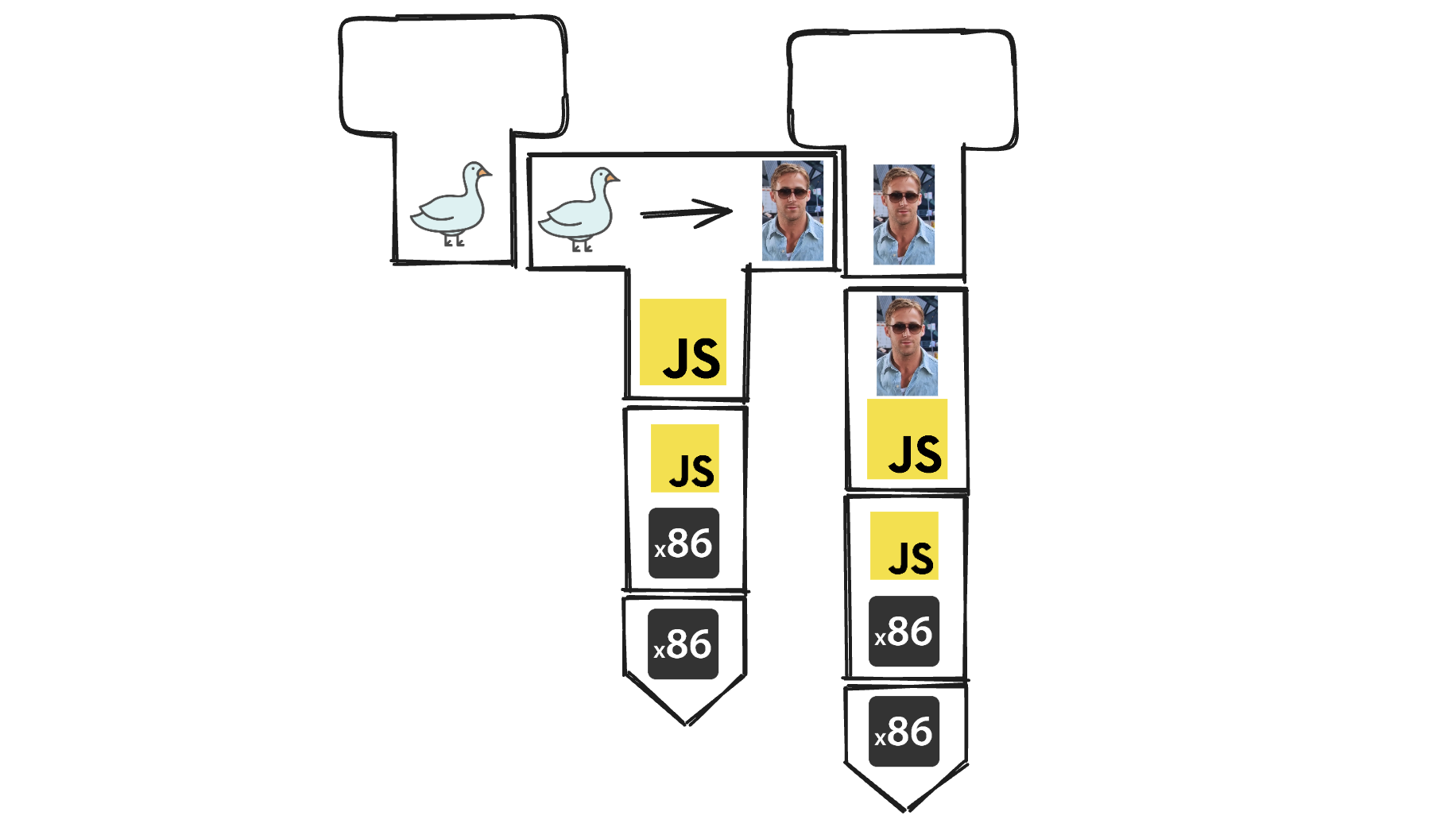

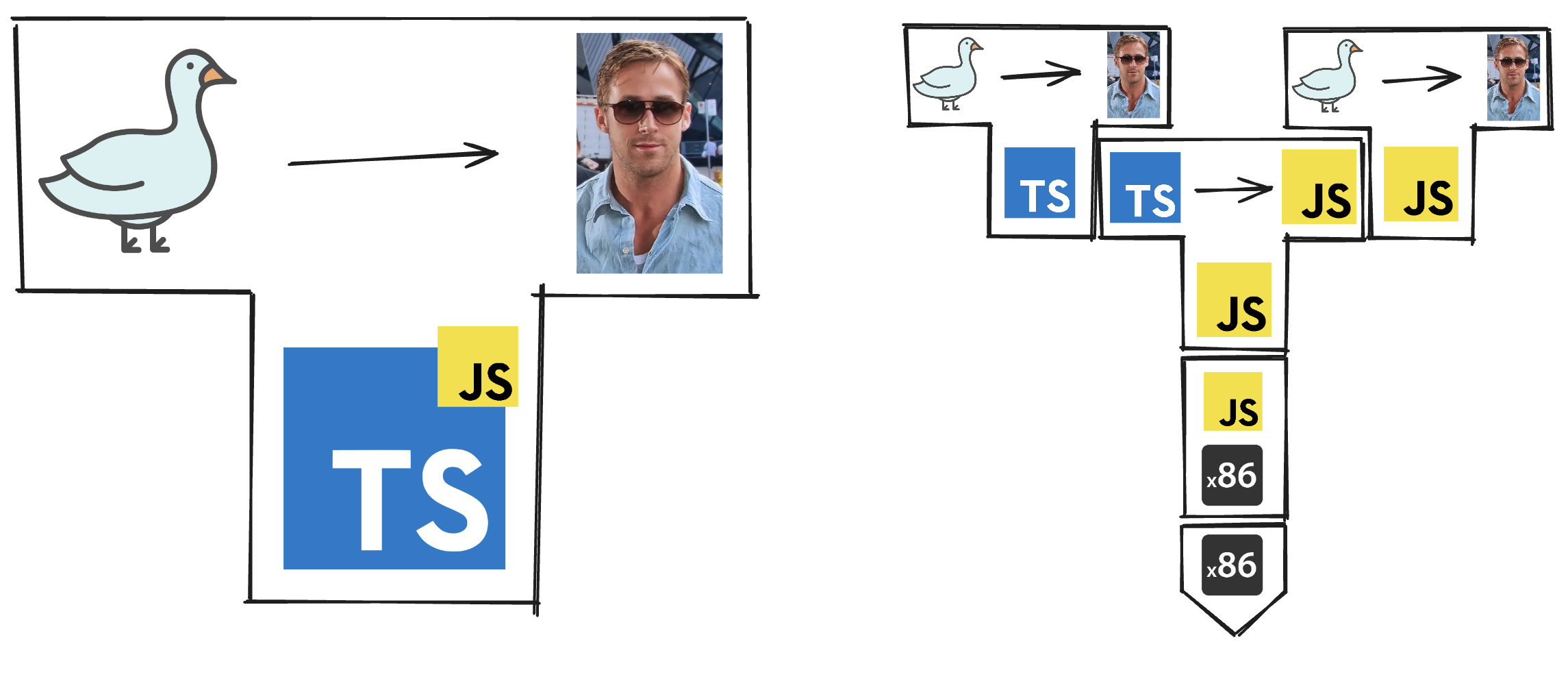

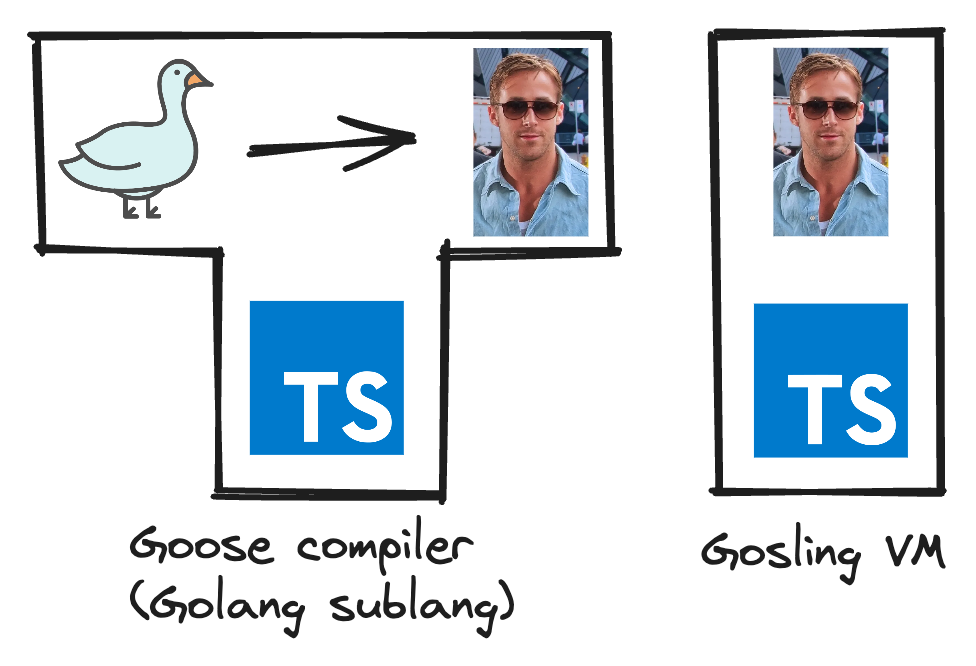

Goose Compiler

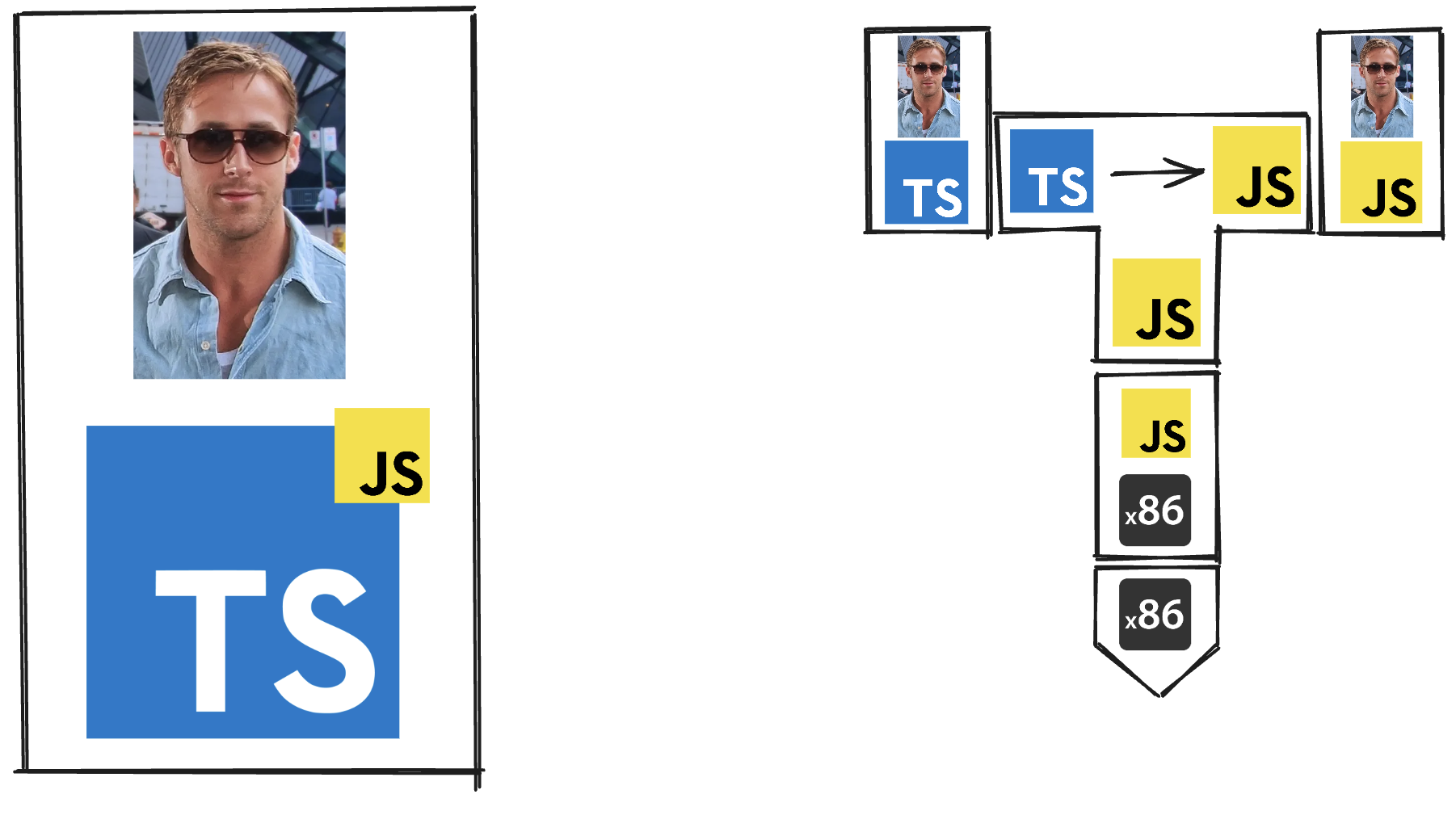

Gosling VM


Final Result


Key Tools

  • PeggyJs generates left-recursive parser in JS
  • TSC: strong confidence in preventing malformed objects and ensuring safe logic in parsing, compiling and execution
  • Jest: CI/CD regression testing & test-driven development

Compiler

  • recursive compiler
    • well-typed parsed objects -> well-typed instruction data objects
  • macro-like compiler directives for reusable Gosling snippets
  • addGlobalEnv to set builtins

Compiler Macro Example

updateBuiltinsFnDef(
  `
func testAndSetInt(ptr *int, expected, desired int) bool {
  return __noop(testAndSetInt_TEST_AND_SWAP)
}`,
  {
    testAndSetInt_TEST_AND_SWAP: [
      { op: OpCode.LD, symbol: "desired" },
      { op: OpCode.LD, symbol: "expected" },
      { op: OpCode.LD, symbol: "ptr" },
      { op: OpCode.TEST_AND_SET },
    ],
  }
)

Virtual Machine

  • Gosling interpreter written in Typescript
  • operand-stack architecture, with RTS and OS both stored in VM-managed memory
  • provides access to thread control and sys call (print, breakpoint, yield, ...)

Memory Management

  • our heap is an ArrayBuffer split into fixed-size nodes
  • types: Int, Bool, Str and Binary Pointer
  • composite types (e.g. list, queue, stack, function ptr) are built with Binary Pointer
  • runtime stacks (incl. environment) and operands stacks are stored in the heap

Garbage Collection

  • Stop and Copy (Cheney's) due to low memory residency
  • space: $O(1)$, time: $O(\text{liveNodes})$

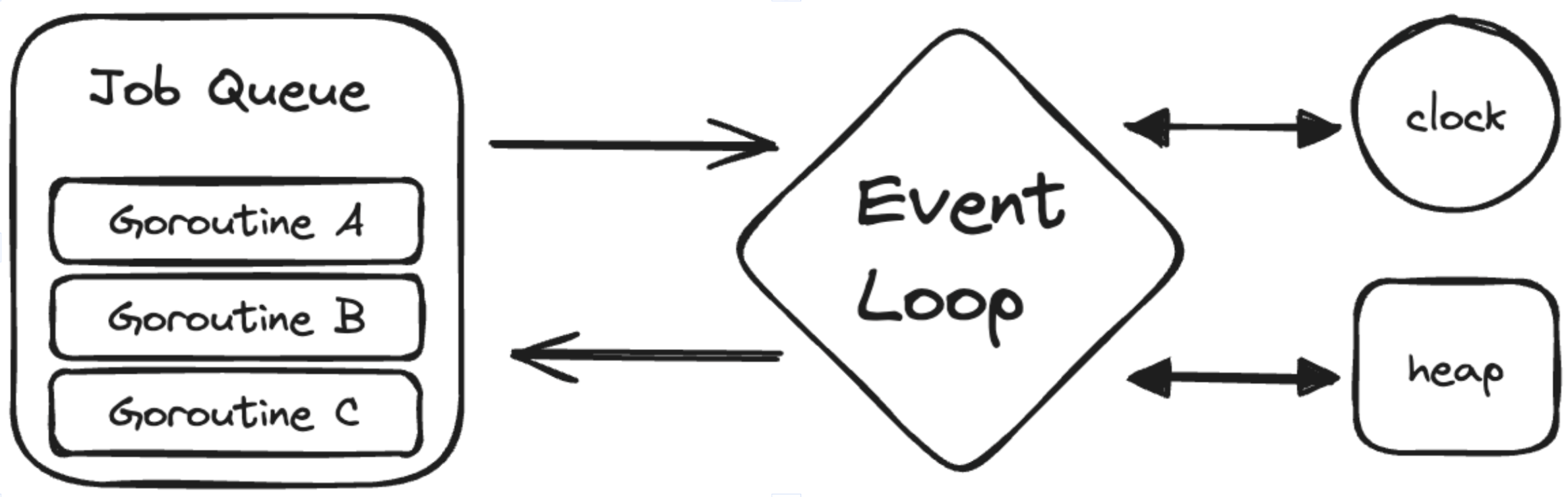

Concurrency Control


Key Concurrency Instructions:

  • SysCall('done'): terminate execution (if main, terminate all)
  • SysCall('yield'): relinquish CPU control
  • TestAndSet: key atomic instruction to implement mutex and semaphore.

Concurrency Constructs:

  • mutex
  • semaphore: with explicit upper-bound
  • waitgroup: bounded semaphore
  • channel: bounded semaphore & mutex

Exploring call behaviour

func main() {
    bar := "main bar"
    foo(1)
    go foo(1)
}

func foo(y int) {
    bar := "foo bar"
    x = x + y // breakpoint
    return
}

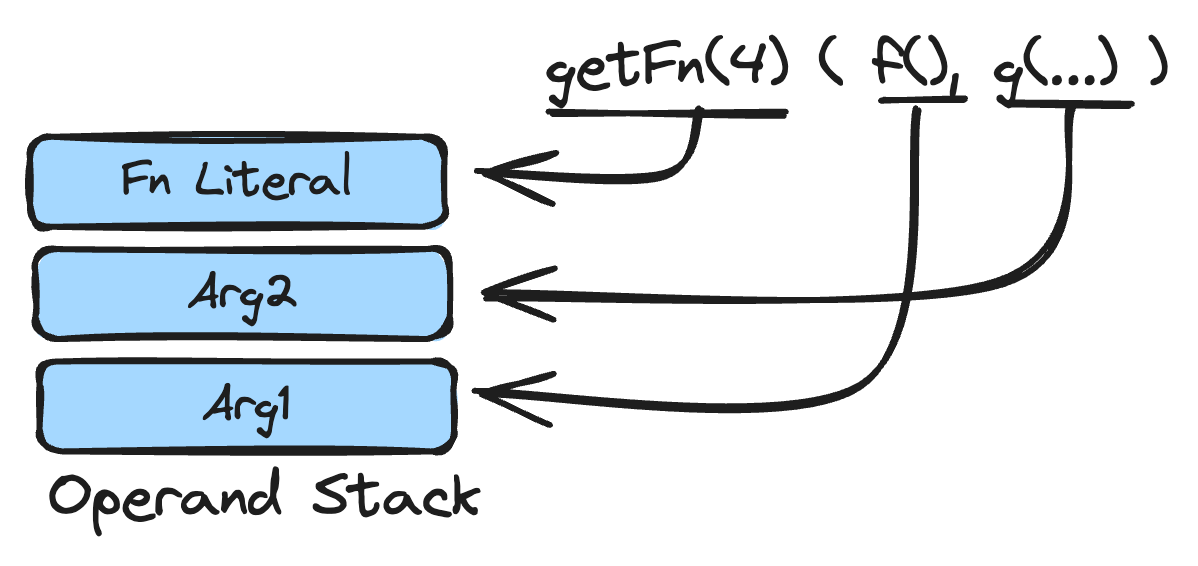

Function Calls / Go routines

  • functions as first class objects
  • support expressions as args or as functions
  • applicative-order evaluation

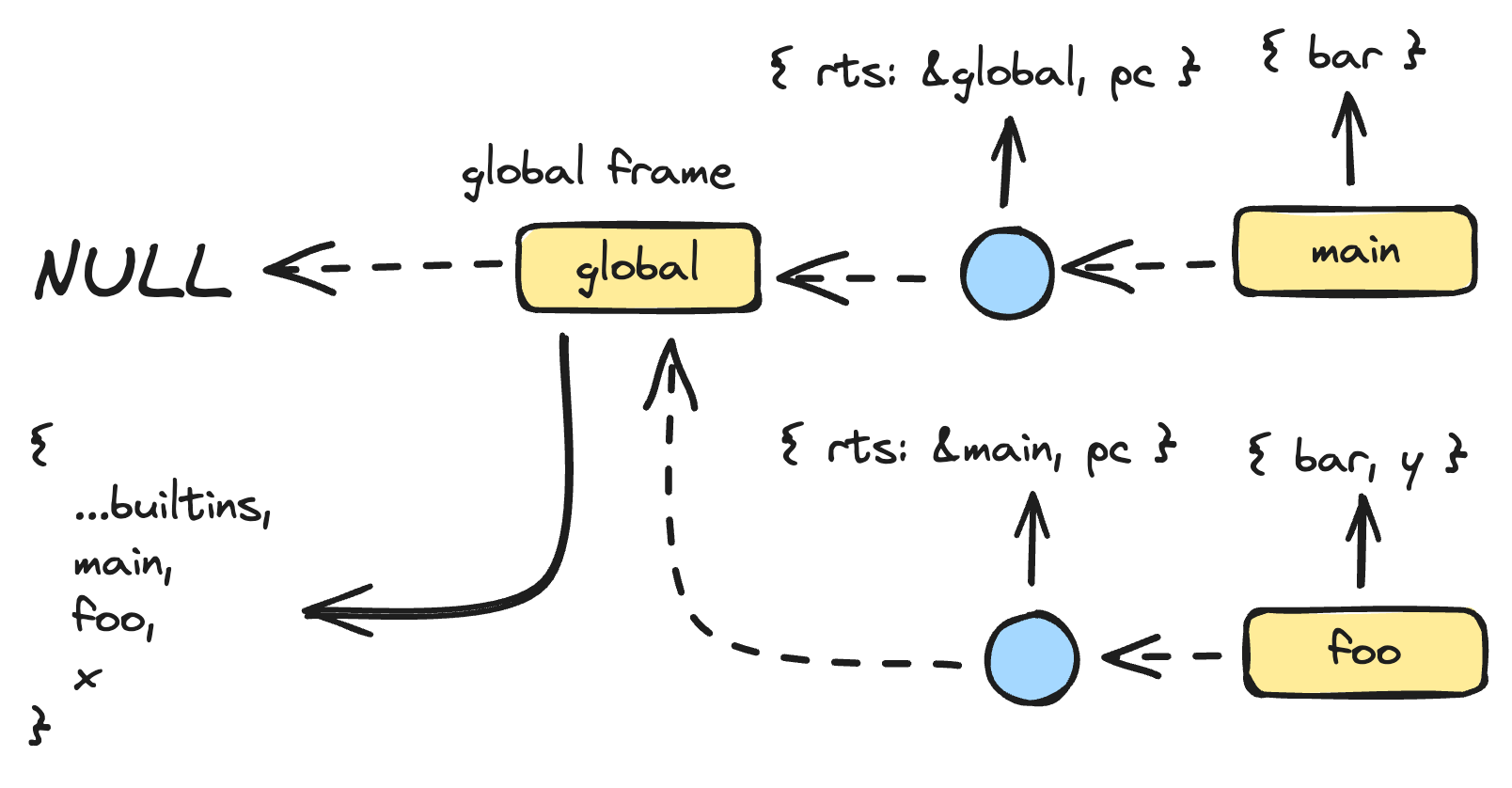

Runtime Stack (foo())

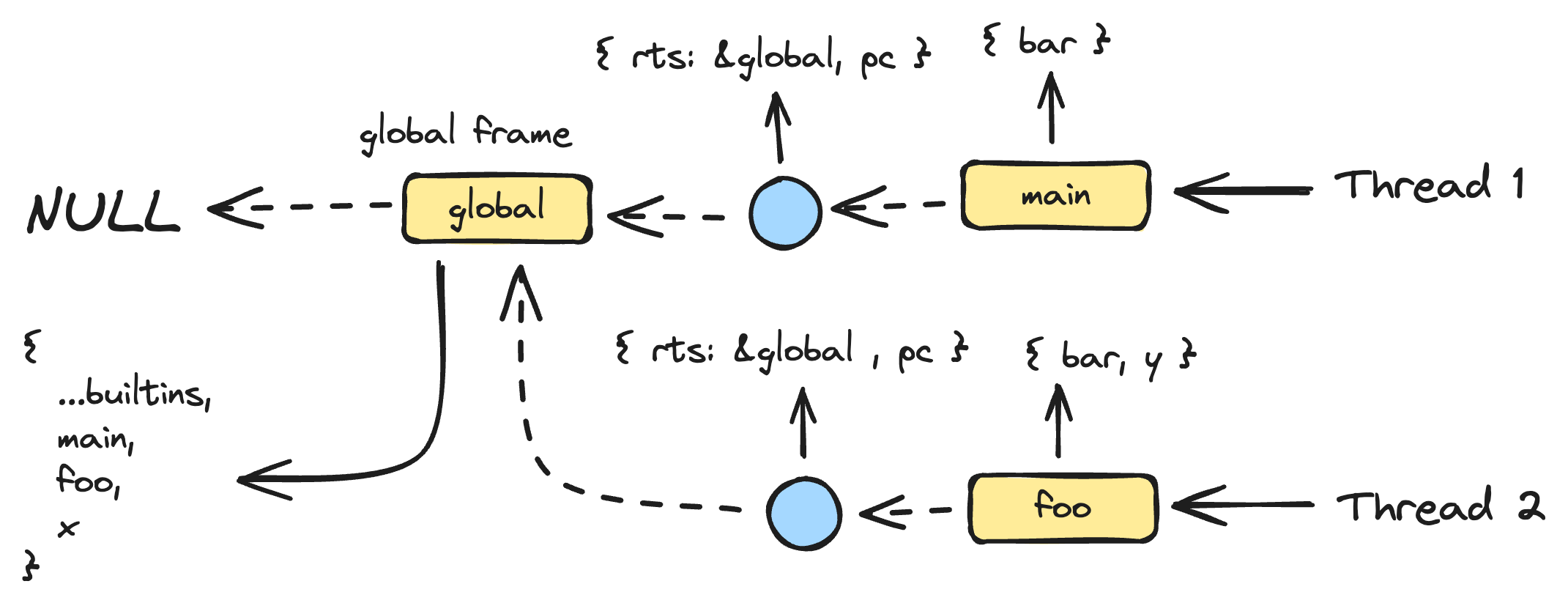

Runtime Stack (go foo())


Limitations & Future

  • Goose types: array, struct
  • typechecking
  • compile time env

Demo

goose-liard.vercel.app

Q & A

Copyright

Goose icons created by manshagraphics - Flaticon

Gosling photo from daman.co.id
